Metric graphs 101: Summary graphs

Metric graphs 101: Summary graphs

/ /
Published: May 5, 2016

This is the second post in a series about visualizing monitoring data. This post focuses on summary graphs.

In the first part of this series, we discussed timeseries graphs—visualizations that show infrastructure metrics evolving through time. In this post we cover summary graphs, which are visualizations that flatten a particular span of time to provide a summary window into your infrastructure:

For each graph type, we’ll explain how it works and when to use it. But first, we’ll quickly discuss two concepts that are necessary to understand infrastructure summary graphs: aggregation across time (which you can think of as “time flattening” or “snapshotting”), and aggregation across space.

Aggregation across time

To provide a summary view of your metrics, a visualization must flatten a timeseries into a single value by compressing the time dimension out of view. This aggregation across time can mean simply displaying the latest value returned by a metric query, or a more complex aggregation to return a computed value over a moving time window.

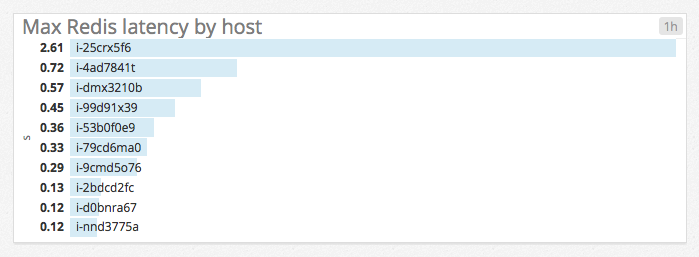

For example, instead of displaying only the latest reported value for a metric query, you may want to display the maximum value reported by each host over the past 60 minutes to surface problematic spikes:

Redis latency graphs

Aggregation across space

Not all metric queries make sense broken out by host, container, or other unit of infrastructure. So you will often need some aggregation across space to create a metric visualization that sensibly reflects your infrastructure. This aggregation can take many forms: aggregating metrics by messaging queue, by database table, by application, or by some attribute of your hosts themselves (operating system, availability zone, hardware profile, etc.).

Aggregation across space allows you to slice and dice your infrastructure to isolate exactly the metrics that make your key systems observable.

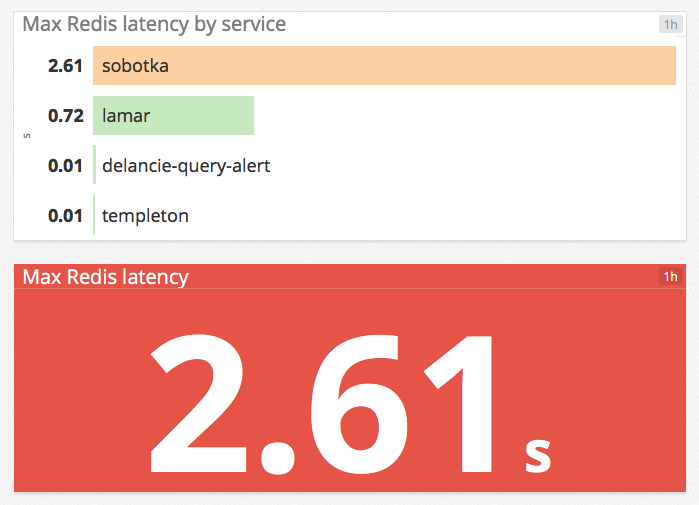

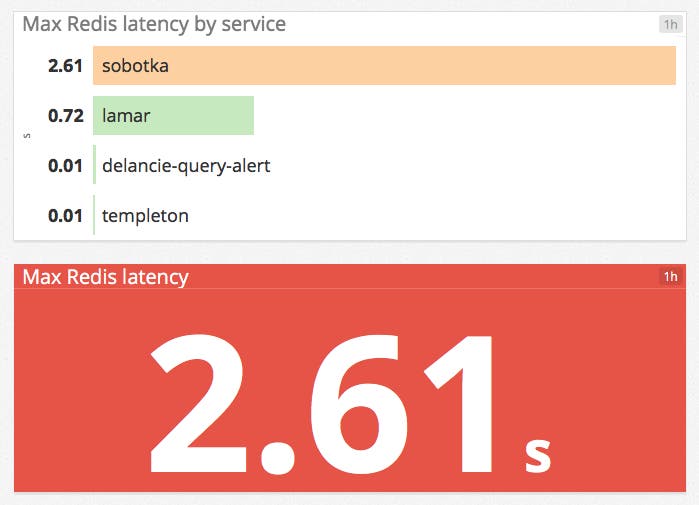

Instead of listing peak Redis latencies at the host level as in the example above, it may be more useful to see peak latencies for each internal service that is built on Redis. Or you can surface only the maximum value reported by any one host in your infrastructure:

Redis latency graphs
Aggregation across space: grouping hosts by service name (top) or compressing a list of hosts to a single value (bottom)

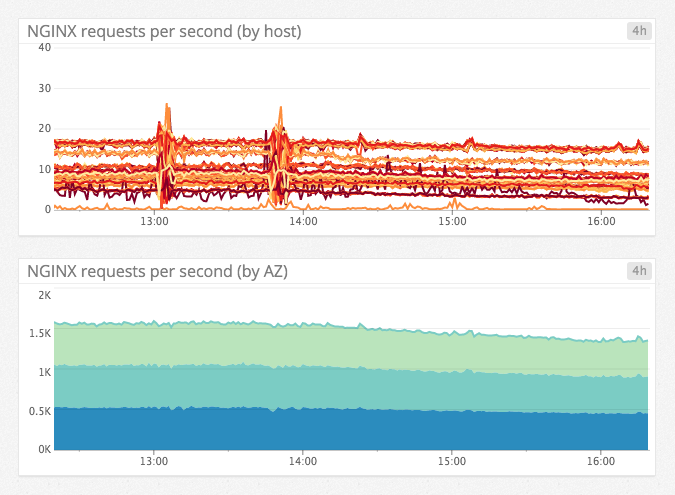

Aggregation across space is also useful in timeseries graphs. For instance, it is hard to make sense of a host-level graph of web requests, but the same data is easily interpreted when the metrics are aggregated by availability zone:

Redis latency graphs
From unaggregated (line graph, top) to aggregated across space (stacked area graph, bottom)

The primary reason to tag your metrics is to enable aggregation across space.

Single-value summaries

Single-value summaries display the current value of a given metric query, with conditional formatting (such as a green/yellow/red background) to convey whether or not the value is in the expected range. The value displayed by a single-value summary need not represent an instantaneous measurement. The widget can display the latest value reported, or an aggregate computed from all query values across the time window. These visualizations provide a narrow but unambiguous window into your infrastructure.

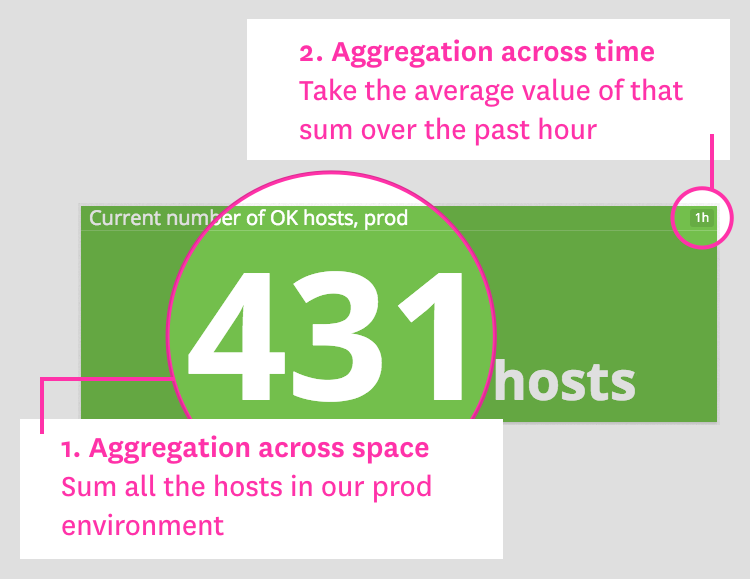

Host count widget

When to use single-value summaries

WhatWhyExample
Work metrics from a given systemTo make key metrics immediately visibleWeb server requests per second

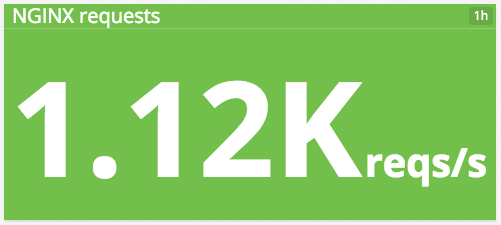

NGINX requests per second

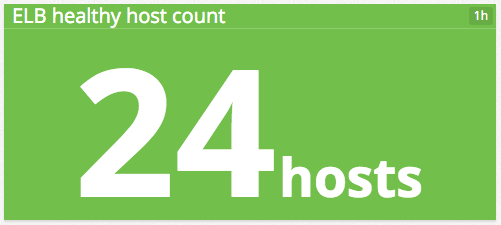

Critical resource metricsTo provide an overview of resource status and health at a glanceHealthy hosts behind load balancer
Total ELB host count
Error metricsTo quickly draw attention to potential problemsFatal database exceptions

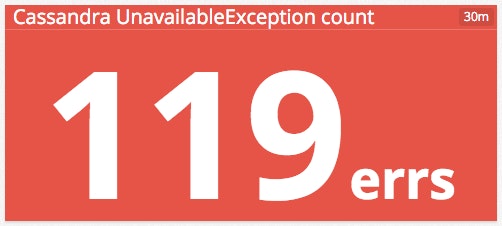

Cassandra unavailable exceptions

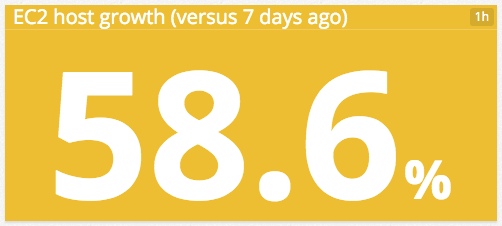

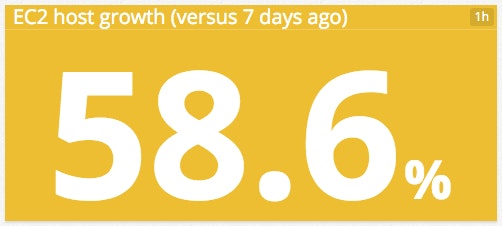

Computed metric changes as compared to previous valuesTo communicate key trends clearlyHosts in use versus one week ago
Increase in EC2 hosts

Toplists

Toplists are ordered lists that allow you to rank hosts, clusters, or any other segment of your infrastructure by their metric values. Because they are so easy to interpret, toplists are especially useful in high-level status boards.

Compared to single-value summaries, toplists have an additional layer of aggregation across space, in that the value of the metric query is broken out by group. Each group can be a single host or an aggregation of related hosts.

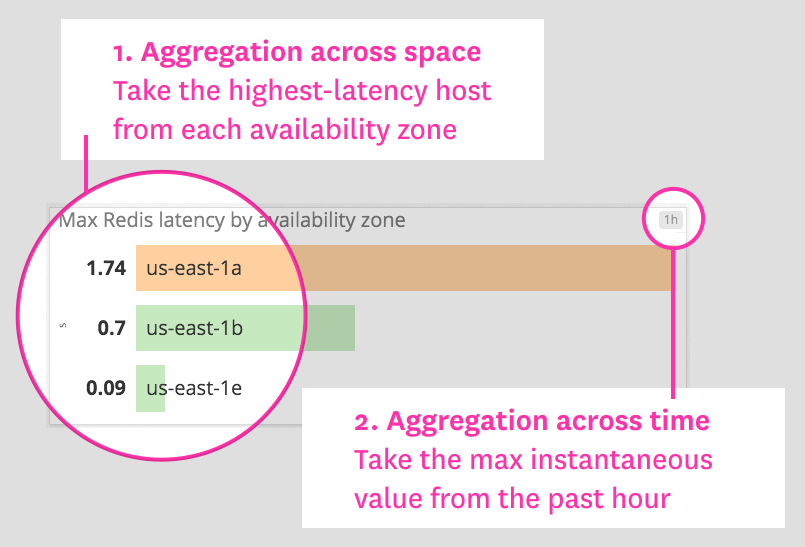

Max Redis latency per AZ

When to use toplists

WhatWhyExample
Work or resource metrics taken from different hosts or groupsTo spot outliers, underperformers, or resource overconsumers at a glancePoints processed per app server

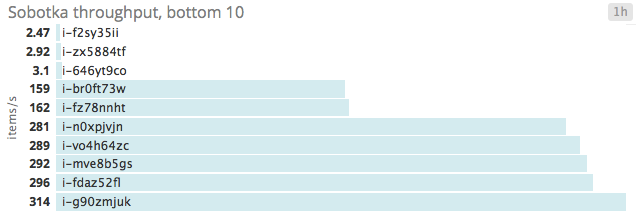

Server toplist
Custom metrics returned as a list of valuesTo convey KPIs in an easy-to-read format (e.g. for status boards on wall-mounted displays)Versions of the Datadog agent in use

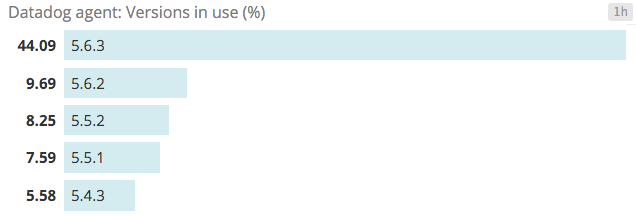

Agent version toplist

Change graphs

Whereas toplists give you a summary of recent metric values, change graphs compare a metric’s current value against its value at a point in the past.

The key difference between change graphs and other visualizations is that change graphs take two different timeframes as parameters: one for the size of the evaluation window and one to set the lookback window.

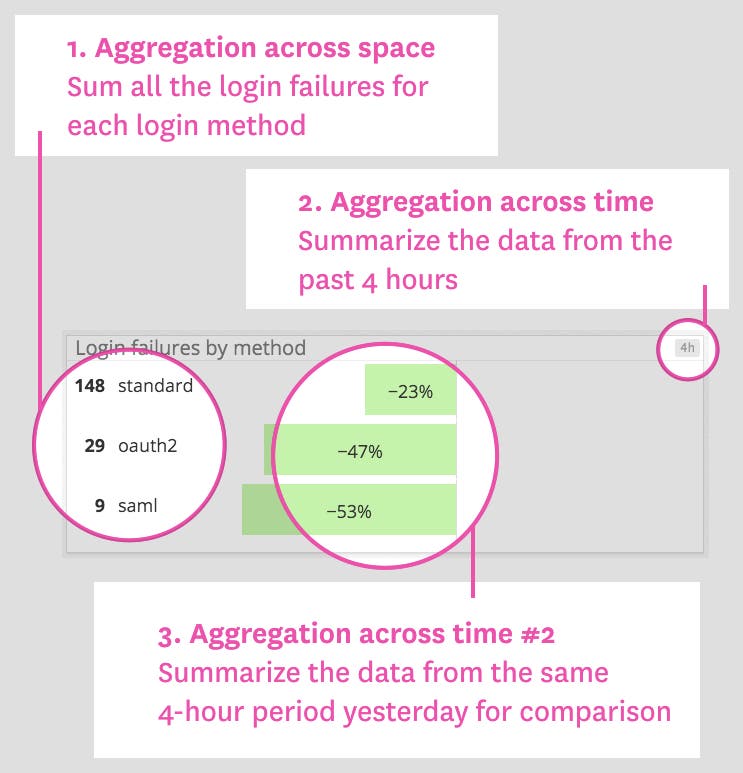

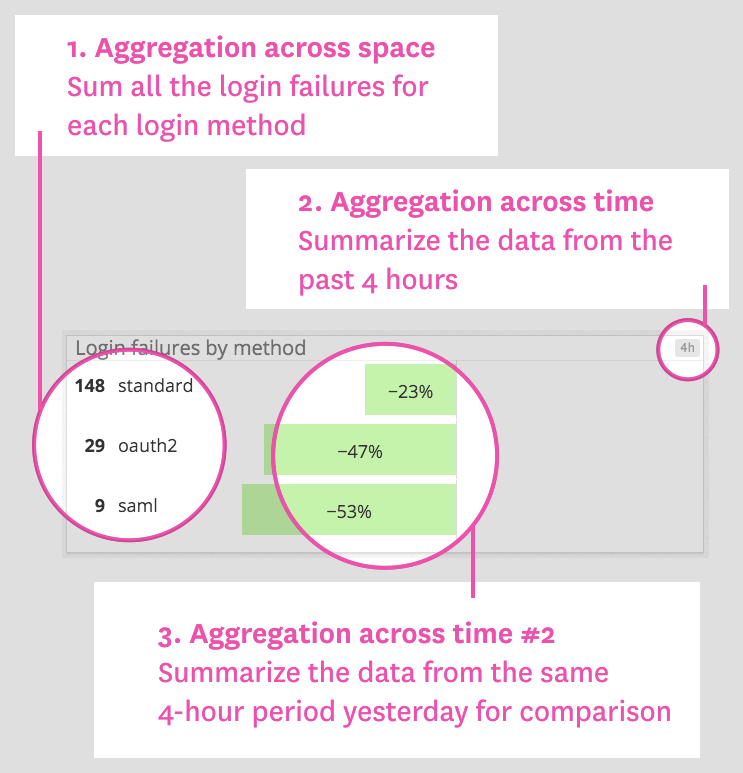

Login failures change graph

When to use change graphs

WhatWhyExample

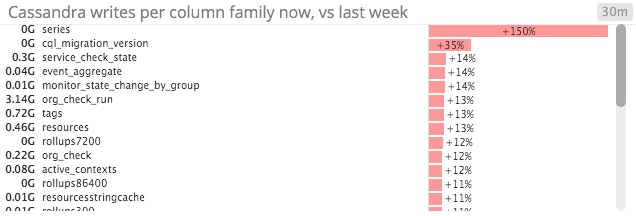

Cyclic metrics that rise and fall daily, weekly, or monthlyTo separate metric trends from periodic baselinesDatabase write throughput, compared to same time last week
Cassandra write throughput
High-level infrastructure metricsTo quickly identify large-scale trendsTotal host count, compared to same time yesterday

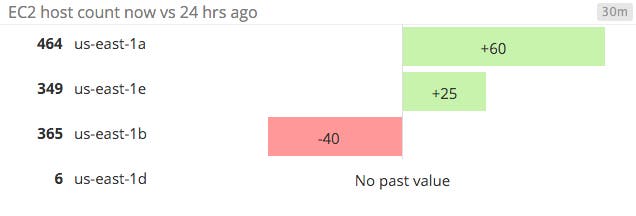

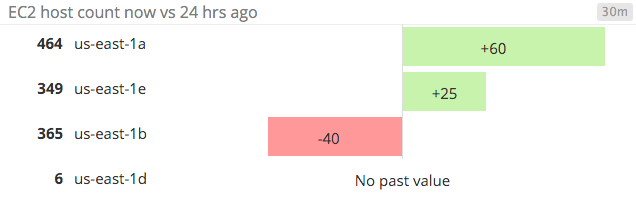

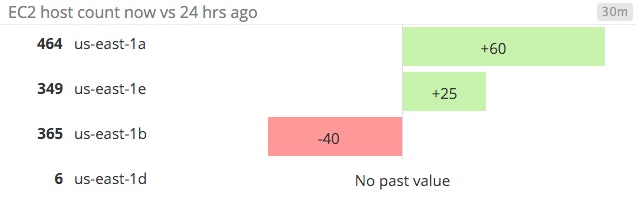

EC2 host count change graph

Host maps

Host maps are a unique way to observe your entire infrastructure, or any slice of it, at a glance. However you slice and dice your infrastructure (by data center, by service name, by instance type, etc.), you will see each host in the selected group as a hexagon, color-coded and sized by any metrics reported by those hosts.

This particular visualization type is unique to Datadog. As such, it is specifically designed for infrastructure monitoring, in contrast to the general-purpose visualizations described elsewhere in this article.

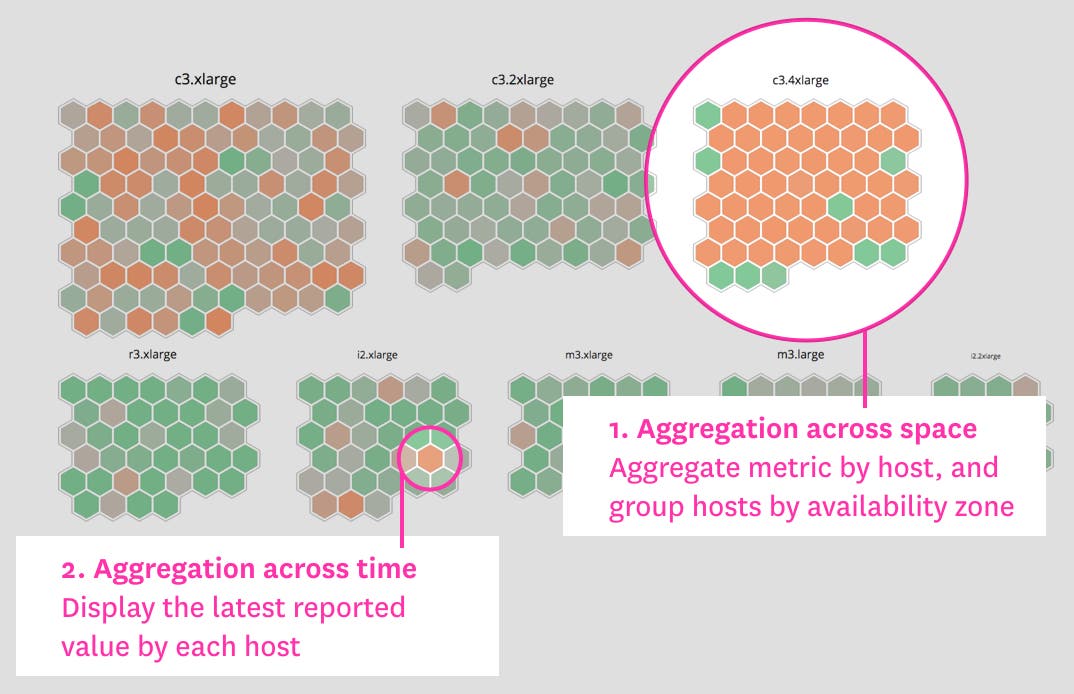

Host map by instance type

When to use host maps

What Why Example

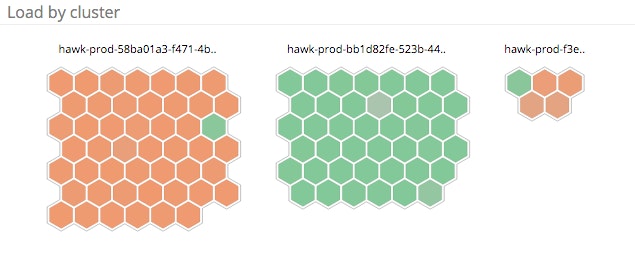

Resource utilization metrics To spot overloaded components at a glance Load per app host, grouped by cluster
Load per cluster host map

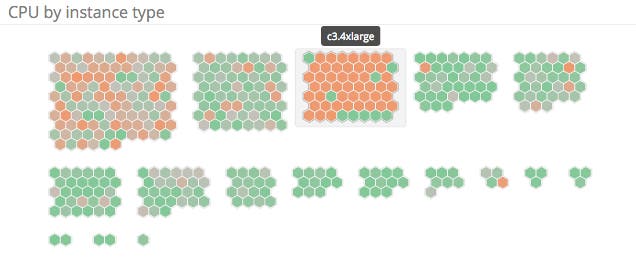

To identify resource misallocation (e.g. whether any instances are over- or undersized) CPU usage per EC2 instance type
CPU per instance type

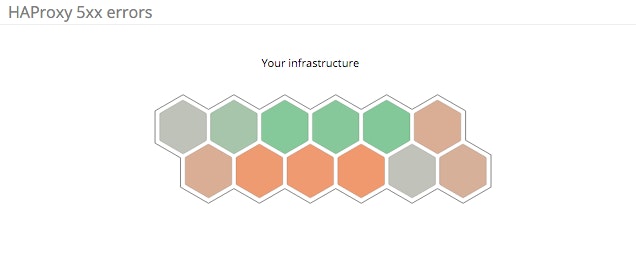

Error or other work metrics To quickly identify degraded hosts HAProxy 5xx errors per server

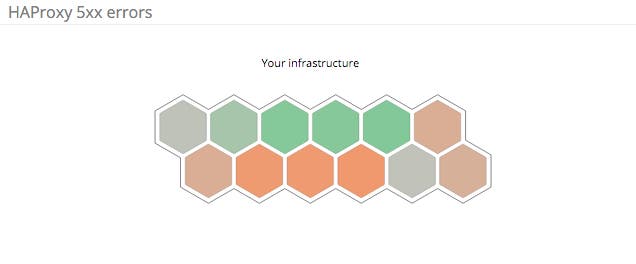

Server errors per HAProxy hosy

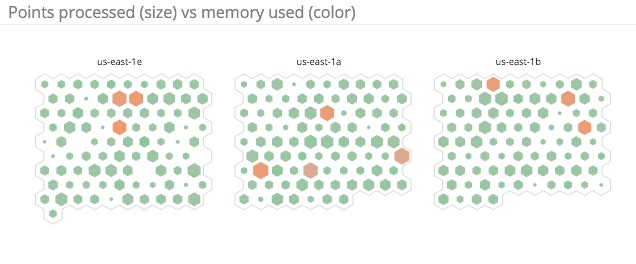

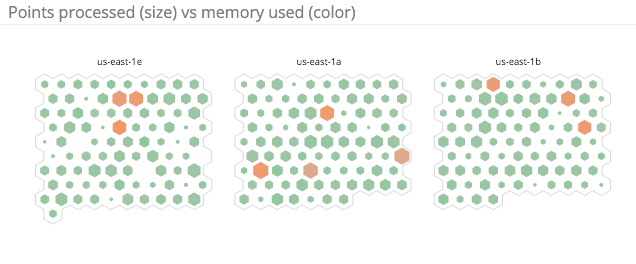

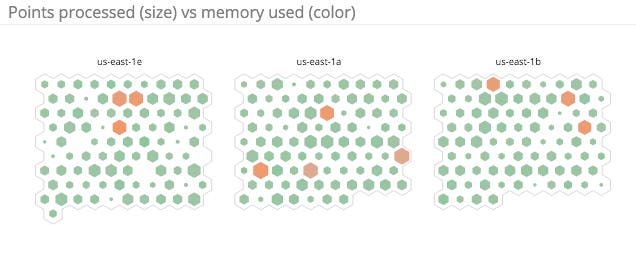

Related metrics To see correlations in a single graph App server throughput versus memory used
Server errors per HAProxy host

Distributions

Distribution graphs show a histogram of a metric’s value across a segment of infrastructure. Each bar in the graph represents a range of binned values, and its height corresponds to the number of entities reporting values in that range.

Distribution graphs are closely related to heat maps. The key difference between the two is that heat maps show change over time, whereas distributions are a summary of a time window. Like heat maps, distributions handily visualize large numbers of entities reporting a particular metric, so they are often used to graph metrics at the individual host or container level.

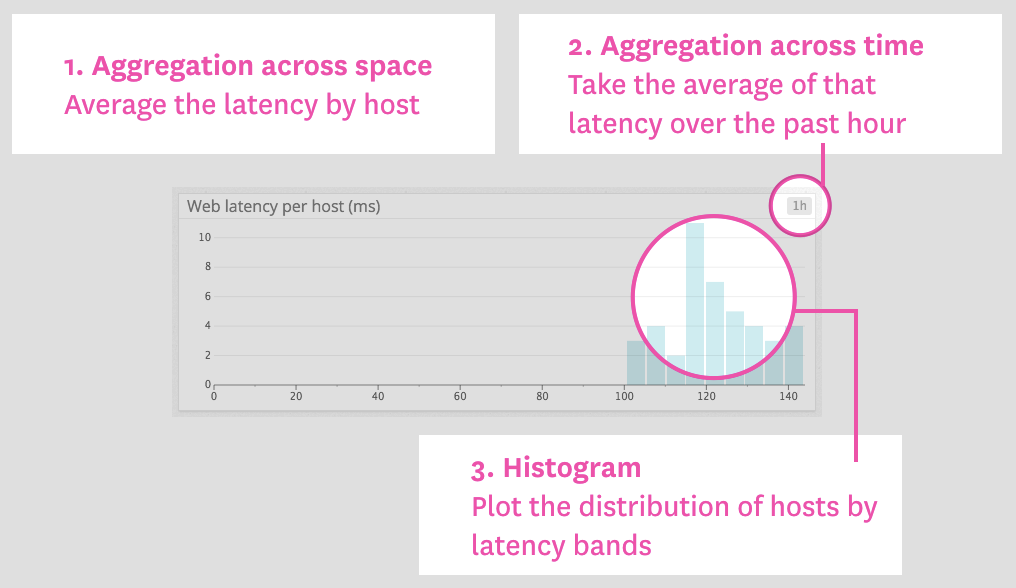

Latency per web server

When to use distributions

What Why Example

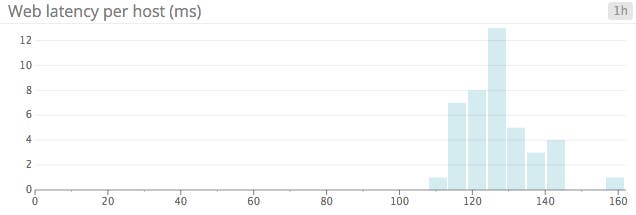

Single metric reported by a large number of entities To convey general health or status at a glance Web latency per host

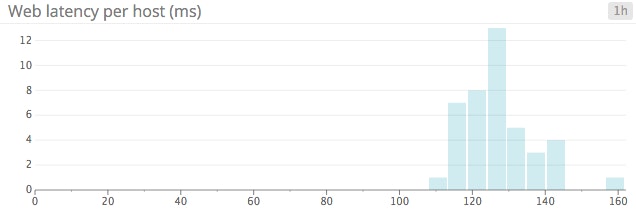

Latency per host distribution

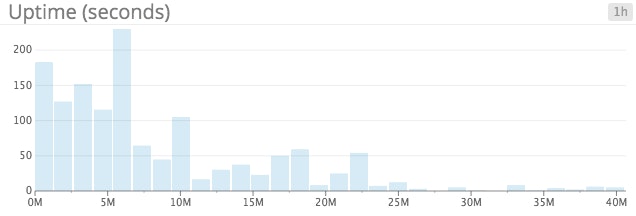

To see variations across members of a group Uptime per host

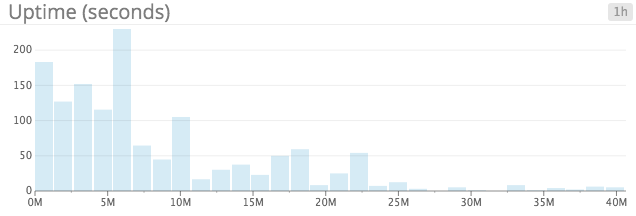

Uptime per server distribution

Wrap-up

Each of these specialized visualization types has unique benefits and use cases, as we’ve shown here. Understanding all the visualizations available to you, and when to use each type, will help you convey actionable information clearly in your dashboards.

In the next article in this series, we’ll explore common anti-patterns in metric visualization (and, of course, how to avoid them).
