Monitoring RDS MySQL performance metrics

Author John Matson
@jmtsn

Published: October 20, 2015

This post is part 1 of a 3-part series about monitoring MySQL on Amazon RDS. Part 2 is about collecting metrics from both RDS and MySQL, and Part 3 details how to monitor MySQL on RDS with Datadog.

What is RDS?

Amazon Relational Database Service (RDS) is a hosted database service in the AWS cloud. RDS users can choose from several relational database engines, including MySQL, Oracle, SQL Server, Postgres, MariaDB, and Amazon Aurora, a new MySQL-compatible database built for RDS. This article focuses on the original RDS database engine: MySQL.

Key RDS MySQL performance metrics

To keep your applications running smoothly, it is important to understand and track performance metrics in the following areas:

Users of MySQL on RDS have access to hundreds of metrics, but it’s not always easy to tell what you should focus on. In this article we’ll highlight key metrics in each of the above areas that together give you a detailed view of your database’s performance.

RDS metrics (as opposed to MySQL metrics) are available through Amazon CloudWatch, and are available regardless of which database engine you use. MySQL metrics, on the other hand, must be accessed from the database instance itself. Part 2 of this series explains how to collect both types of metrics.

Most of the performance metrics outlined here also apply to Aurora and MariaDB on RDS, but there are some key differences between the database engines. For instance, Aurora has auto-scaling storage and therefore does not expose a metric tracking free storage space. And the version of MariaDB (10.0.17) available on RDS at the time of this writing is not fully compatible with the MySQL Workbench tool or the sys schema, both of which are detailed in Part 2 of this series.

This article references metric terminology introduced in our Monitoring 101 series, which provides a framework for metric collection and alerting.


Query throughput

NameDescriptionMetric typeAvailability
QuestionsCount of executed statements (sent by client only)Work: ThroughputMySQL
QueriesCount of executed statements (sent by client or executed within stored programs)Work: ThroughputMySQL
Reads (calculated)Selects + Query cache hitsWork: ThroughputMySQL
Writes (calculated)Inserts + Updates + DeletesWork: ThroughputMySQL

Your primary concern in monitoring any system is making sure that its work is being done effectively. A database’s work is running queries, so the first priority in any monitoring strategy should be making sure that queries are being executed.

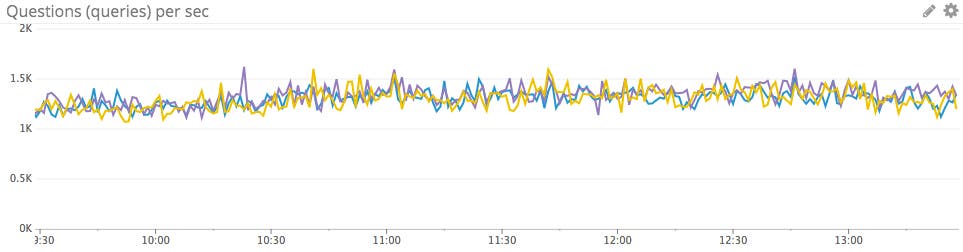

The MySQL server status variable Questions is incremented for all statements sent by client applications. The similar metric Queries is a more all-encompassing count that includes statements executed as part of stored programs, as well as commands such as PREPARE and DEALLOCATE PREPARE, which are run as part of server-side prepared statements. For most RDS deployments, the client-centric view makes Questions the more valuable metric.

You can also monitor the breakdown of read and write commands to better understand your database’s read/write balance and identify potential bottlenecks. Those metrics can be computed by summing native MySQL metrics. Reads increment one of two status variables, depending on whether or not the read is served from the query cache:

Reads = Com_select + Qcache_hits

Writes increment one of three status variables, depending on the command:

Writes = Com_insert + Com_update + Com_delete

Metric to alert on: Questions

The current rate of queries will naturally rise and fall, and as such is not always an actionable metric based on fixed thresholds alone. But it is worthwhile to alert on sudden changes in query volume—drastic drops in throughput, especially, can indicate a serious problem.


Query performance

NameDescriptionMetric typeAvailability
Slow_queriesNumber of queries exceeding configurable long_query_time limitWork: PerformanceMySQL
Query errorsNumber of SQL statements that generated errorsWork: ErrorMySQL*

*The count of query errors is not exposed directly as a MySQL metric, but can be gathered by a MySQL query.

Amazon’s CloudWatch exposes ReadLatency and WriteLatency metrics for RDS (discussed below), but those metrics only capture latency at the disk I/O level. For a more holistic view of query performance, you can dive into native MySQL performance metrics for query latency. MySQL features a Slow_queries metric, which increments every time a query’s execution time exceeds the number of seconds specified by the long_query_time parameter. long_query_time is set to 10 seconds by default but can be modified in the AWS Console. To modify long_query_time (or any other MySQL parameter), simply log in to the Console, navigate to the RDS Dashboard, and select the parameter group that your RDS instance belongs to. You can then filter to find the parameter you want to edit.


MySQL’s performance schema (when enabled) also stores valuable statistics, including query latency, from the database server. Though you can query the performance schema directly, it is easier to use Mark Leith’s sys schema, which provides convenient views, functions, and procedures to gather metrics from MySQL. For instance, to find the execution time of all the different statement types executed by each user:

mysql> select * from sys.user_summary_by_statement_type;

Or, to find the slowest statements (those in the 95th percentile by runtime):

mysql> select * from sys.statements_with_runtimes_in_95th_percentile\G

Many useful usage examples are detailed in the sys schema documentation.

To enable the performance schema, you must set the performance_schema parameter to 1 in the database instance’s parameter group using the AWS console. If not enabled, this change requires an instance reboot. More about enabling the performance schema and installing the sys schema in Part 2 of this series.

If your queries are executing more slowly than expected, evaluate your resource metrics and MySQL performance metrics that track how often operations have been blocked on acquiring a lock. In particular, check the Innodb_row_lock_waits metric, which counts how often InnoDB (the default storage engine for MySQL on RDS) had to wait to acquire a row lock.

MySQL users also have a number of caching options to expedite transactions, from making more RAM available for the buffer pool used by InnoDB (MySQL’s default storage engine), to enabling the query cache to serve identical queries from memory, to using an application-level cache such as memcached or Redis.

The performance schema and sys schema also allow you to quickly assess how many queries generated errors or warnings:

mysql> SELECT SUM(errors) FROM sys.statements_with_errors_or_warnings;

Metrics to alert on

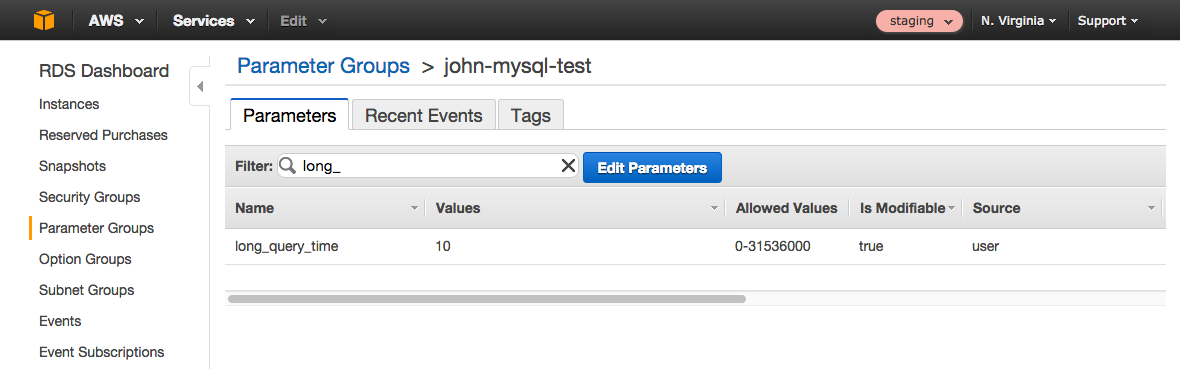

  • Slow_queries: How you define a slow query (and therefore how you configure the long_query_time parameter) will depend heavily on your use case and performance requirements. If the number of slow queries reaches worrisome levels, you will likely want to identify the actual queries that are executing slowly so you can optimize them. You can do this by querying the sys schema or by configuring MySQL to log all slow queries. More information on enabling and accessing the slow query log is available in the RDS documentation.

    mysql> select * from mysql.slow_log\G
      *************************** 1. row ***************************
          start_time: 2015-09-15 20:47:18
           user_host: gob[gob] @  [x.x.x.x]
          query_time: 00:00:03
           lock_time: 00:00:00
           rows_sent: 2844047
       rows_examined: 3144071
                  db: employees
      last_insert_id: 0
           insert_id: 0
           server_id: 1656409327
            sql_text: select * from employees left join salaries using (emp_no)
           thread_id: 21260

  • Query errors: A sudden increase in query errors can indicate a problem with your client application or your database. You can use the sys schema to quickly explore which queries may be causing problems. For instance, to list the 10 normalized statements that have returned the most errors:

    mysql> SELECT * FROM sys.statements_with_errors_or_warnings ORDER BY errors DESC LIMIT 10\G


Resource utilization

Disk I/O metrics

DescriptionCloudWatch nameEnhanced monitoring nameMetric type
Read I/O operations per secondReadIOPSdiskIO.readIOsPSResource: Utilization
Write I/O operations per secondWriteIOPSdiskIO.writeIOsPSResource: Utilization
I/O operations waiting for disk accessDiskQueueDepthdiskIO.avgQueueLenResource: Saturation
Milliseconds per read I/O operationReadLatency-Resource: Other
Milliseconds per write I/O operationWriteLatency-Resource: Other

CPU, memory, storage, and network metrics

DescriptionCloudWatch nameEnhanced monitoring nameMetric type
Percent CPU utilizedCPUUtilizationcpuUtilization.totalResource: Utilization
Available RAM in gigabytesFreeableMemorymemory.freeResource: Utilization
Swap usageSwapUsageswap.cachedResource: Saturation
Available storage in bytesFreeStorageSpace-Resource: Utilization
Network traffic to the MySQL instanceNetworkReceive Throughput (bytes/s)network.rx (packets)Resource: Utilization
Network traffic from the MySQL instanceNetworkTransmit Throughput (bytes/s)network.tx (packets)Resource: Utilization

As Baron Schwartz, co-author of High Performance MySQL, often notes, a database needs four fundamental resources: CPU, memory, disk, and network. Any of these can become a performance bottleneck—for a look at how difference RDS instance types can be constrained by their available resources, check out this 2013 talk by Amazon’s Grant McAlister.

Whenever your database instance experiences performance problems, you should check metrics pertaining to the four fundamental resources to look for bottlenecks. As of December 2015, RDS users have access to enhanced monitoring functionality that exposes detailed system-level metrics for RDS instances. These enhanced metrics can be reported at frequencies as high as once per second. Even out of the box, however, CloudWatch does make available basic metrics, detailed below, on all four fundamental resources. For the most part, these metrics are most useful for investigating (rather than detecting) performance issues.

Disk I/O metrics

CloudWatch makes available RDS metrics on read and write IOPS. These metrics are useful for monitoring the performance of your database and to ensure that your IOPS do not exceed the limits of your chosen instance type. If you are running an RDS instance in production, you will likely want to choose Provisioned IOPS storage to ensure consistent performance.

If your storage volumes cannot keep pace with the volume of read and write requests, you will start to see I/O operations queuing up. The DiskQueueDepth metric measures the length of this queue at any given moment.

Note that there will not be a one-to-one correspondence between queries and disk operations—queries that can be served from memory will bypass disk, for instance, and queries that return a large amount of data can involve more than one I/O operation. Specifically, reading or writing more than 16 KB, the default page size for MySQL, will require multiple I/O operations.

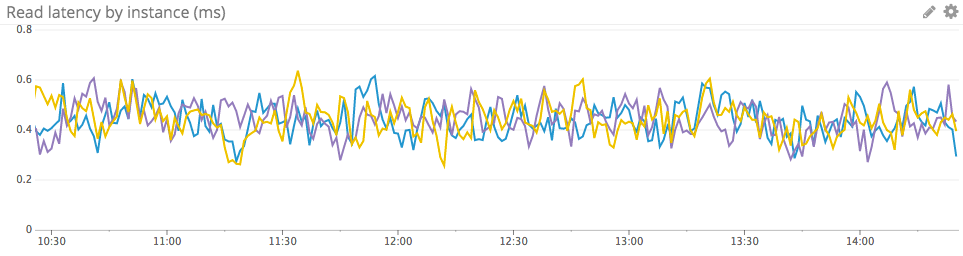

In addition to I/O throughput metrics, RDS offers ReadLatency and WriteLatency metrics. These metrics do not capture full query latency—they only measure how long your I/O operations are taking at the disk level.

For read-heavy applications, one way to overcome I/O limitations is to create a read replica of the database to serve some of the client read requests. For more, see the section below on metrics for read replicas.

CPU metrics

High CPU utilization is not necessarily a bad sign. But if your database is performing poorly while it is within its IOPS and network limits, and while it appears to have sufficient memory, the CPUs of your chosen instance type may be the bottleneck.

Memory metrics

MySQL performs best when most of its working set of data can be held in memory. For this reason, you should monitor FreeableMemory and SwapUsage to ensure that your database instance is not memory-constrained.

AWS advises that you monitor ReadIOPS when the database is under load to ensure that your database instance has enough RAM to keep the working set almost entirely in memory:

The value of ReadIOPS should be small and stable. If scaling up the DB instance class—to a class with more RAM—results in a dramatic drop in ReadIOPS, your working set was not almost completely in memory.

Storage metrics

RDS allows you to allocate a fixed amount of storage when you launch your MySQL instance. The CloudWatch metric FreeStorageSpace lets you monitor how much of your allocated storage is still available. Note that you can always add more storage by modifying your running database instance in the AWS console, but you may not decrease it.

Network metrics

RDS relies on Amazon Elastic Block Store (Amazon EBS) volumes for storage, and the network connection to EBS can limit your throughput. Monitoring NetworkReceiveThroughput and NetworkTransmitThroughput will help you identify potential network bottlenecks.

Even with Provisioned IOPS, it is entirely possible that network limitations will keep your realized IOPS below your provisioned maximum. For instance, if you provision 10,000 IOPS on a db.r3.2xlarge database instance, but your use case is extremely read-heavy, you will reach the bandwidth limit of 1 gigabit per second (roughly 8,000 IOPS) to EBS in each direction before hitting the provisioned limits of your storage.

Metrics to alert on

  • ReadLatency or WriteLatency: Monitoring the latency of your disk operations is critical to identify potential constraints in your MySQL instance hardware or your database usage patterns. If your latency starts to climb, check your IOPS, disk queue, and network metrics to see if you are pushing the bounds of your instance type. If so, consult the RDS documentation for details about storage options, including volumes with provisioned IOPS rates.
  • DiskQueueDepth: It is not unusual to have some requests in the disk queue, but investigation may be in order if this metric starts to climb, especially if latency increases as a result. (Time spent in the disk queue adds to read and write latency.)
  • FreeStorageSpace: AWS recommends that RDS users take action to delete unneeded data or add more storage if disk usage consistently reaches levels of 85 percent or more.

Connection metrics

NameDescriptionMetric typeAvailability
DatabaseConnectionsCurrently open connectionsResource: UtilizationCloudWatch
Threads_connectedCurrently open connectionsResource: UtilizationMySQL
Threads_runningCurrently running connectionsResource: UtilizationMySQL
Aborted_connectsCount of failed connection attempts to the serverResource: ErrorMySQL
Connection_errors_ internalCount of connections refused due to server errorResource: ErrorMySQL
Connection_errors_ max_connectionsCount of connections refused due to max_connections limitResource: ErrorMySQL

Monitoring how many client connections are in use is critical to understanding your database’s activity and capacity. MySQL has a configurable connection limit; on RDS the default value depends on the memory of the database’s instance class in bytes, according to the formula:

max_connections = DBInstanceClassMemory / 12582880

The max_connections parameter can be modified by editing the database instance’s parameter group using the RDS dashboard in the AWS console. You can also check the current value of max_connections by querying the MySQL instance itself (see part 2 of this series for more on connecting to RDS instances directly):

mysql> SELECT @@max_connections;
  +-------------------+
  | @@max_connections |
  +-------------------+
  |               100 |
  +-------------------+
  1 row in set (0.00 sec)

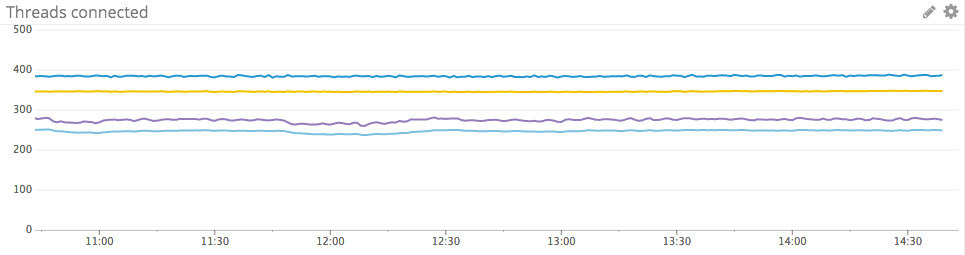

To monitor how many connections are in use, CloudWatch exposes a DatabaseConnections metric tracking open RDS connections, and MySQL exposes a similar Threads_connected metric counting connection threads. (MySQL allocates one thread per connection.) Either metric will help you monitor your connections in use, but the MySQL metric can be collected at higher resolution than the CloudWatch metric, which is reported at one-minute intervals. MySQL also exposes the Threads_running metric to isolate the threads that are actively processing queries.

If your server reaches the max_connections limit and starts to refuse connections, Connection_errors_max_connections will be incremented, as will the Aborted_connects metric tracking all failed connection attempts.

MySQL exposes a variety of other metrics on connection errors, which can help you identify client issues as well as serious issues with the database instance itself. The metric Connection_errors_internal is a good one to watch, because it is incremented when the error comes from the server itself. Internal errors can reflect an out-of-memory condition or the server’s inability to start a new thread.

Metrics to alert on

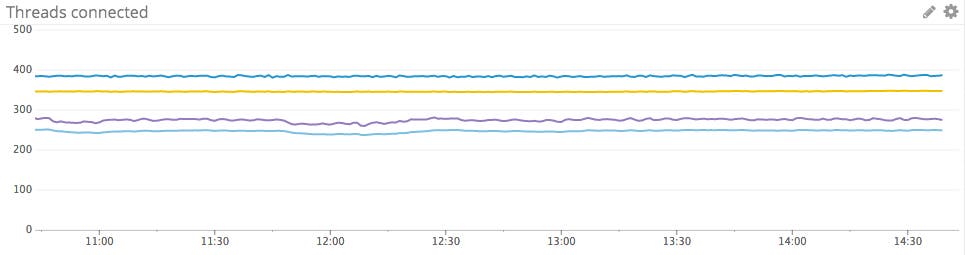

  • Threads_connected: If a client attempts to connect to MySQL when all available connections are in use, MySQL will return a “Too many connections” error and increment Connection_errors_max_connections. To prevent this scenario, you should monitor the number of open connections and make sure that it remains safely below the configured max_connections limit.
  • Aborted_connects: If this counter is increasing, your clients are probably trying and failing to connect to the database. Dig deeper with metrics such as Connection_errors_max_connections and Connection_errors_internal to diagnose the problem.

Read replica metrics

NameDescriptionMetric typeAvailability
ReplicaLagNumber of seconds by which replica trails sourceOtherCloudWatch
BinLogDiskUsageBinary log disk usage on source, in bytesResource: UtilizationCloudWatch

RDS supports the creation of read replicas from the source MySQL instance. A replica is read-only by default so that its data remains in sync with the source, but that setting can be modified to add an index to the replica—to support a certain type of query, for instance.

These replicas are assigned a separate endpoint, so you can point client applications to read from a replica rather than from the source instance. You can also monitor the replica’s connections, throughput, and query performance, just as you would for an ordinary RDS instance.

The lag time for any read replica is captured by the CloudWatch metric ReplicaLag. This metric is usually not actionable, although if the lag is consistently very long, you should investigate your settings and resource usage.

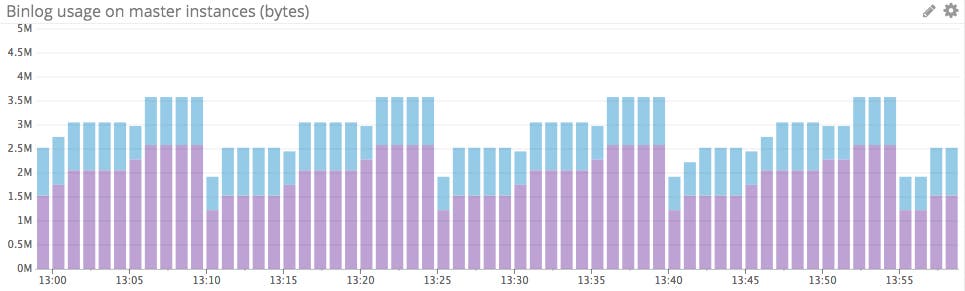

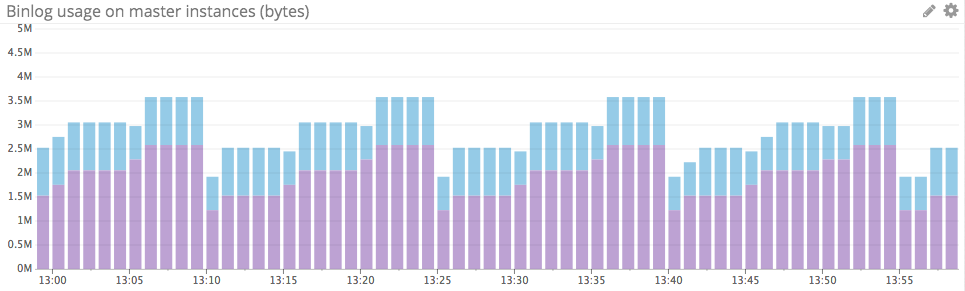

Another relevant metric for replication scenarios is BinLogDiskUsage, which measures the disk usage on the source database instance of binary logs. MySQL asynchronously replicates its data using a single thread on the source, so periods of high-volume writes cause pileups in the source’s binary logs before the updates can be sent to the source.


Conclusion

In this post we have explored the most important metrics you should monitor to keep tabs on performance for MySQL deployed on Amazon RDS. If you are just getting started with MySQL on RDS, monitoring the metrics listed below will give you great insight into your database’s activity and performance. They will also help you to identify when it is necessary to increase your instance storage, IOPS, or memory to maintain good application performance.

Part 2 of this series provides instructions for collecting all the metrics you need from CloudWatch and from MySQL.

Acknowledgments

Many thanks to Baron Schwartz of VividCortex and to Ronald Bradford for reviewing and commenting on this article prior to publication.
