Collecting RDS metrics from PostgreSQL databases

/ / / / /
Published: April 12, 2018

If you read Part 1 of this series, you’ve gotten an overview of the types of metrics that can help you track the health and performance of PostgreSQL on RDS. In order to gain comprehensive insights into PostgreSQL performance, you will need to collect RDS metrics from Amazon CloudWatch, but you will also need to query PostgreSQL metrics directly from each database instance. In this post, we will show you how to collect metrics from both of these sources, so you can keep a handle on RDS PostgreSQL database health and performance.

How to collect RDS metrics from CloudWatch

AWS enables RDS PostgreSQL users to access CloudWatch metrics from their database instances in a few different ways:

Accessing RDS metrics from the AWS Management Console

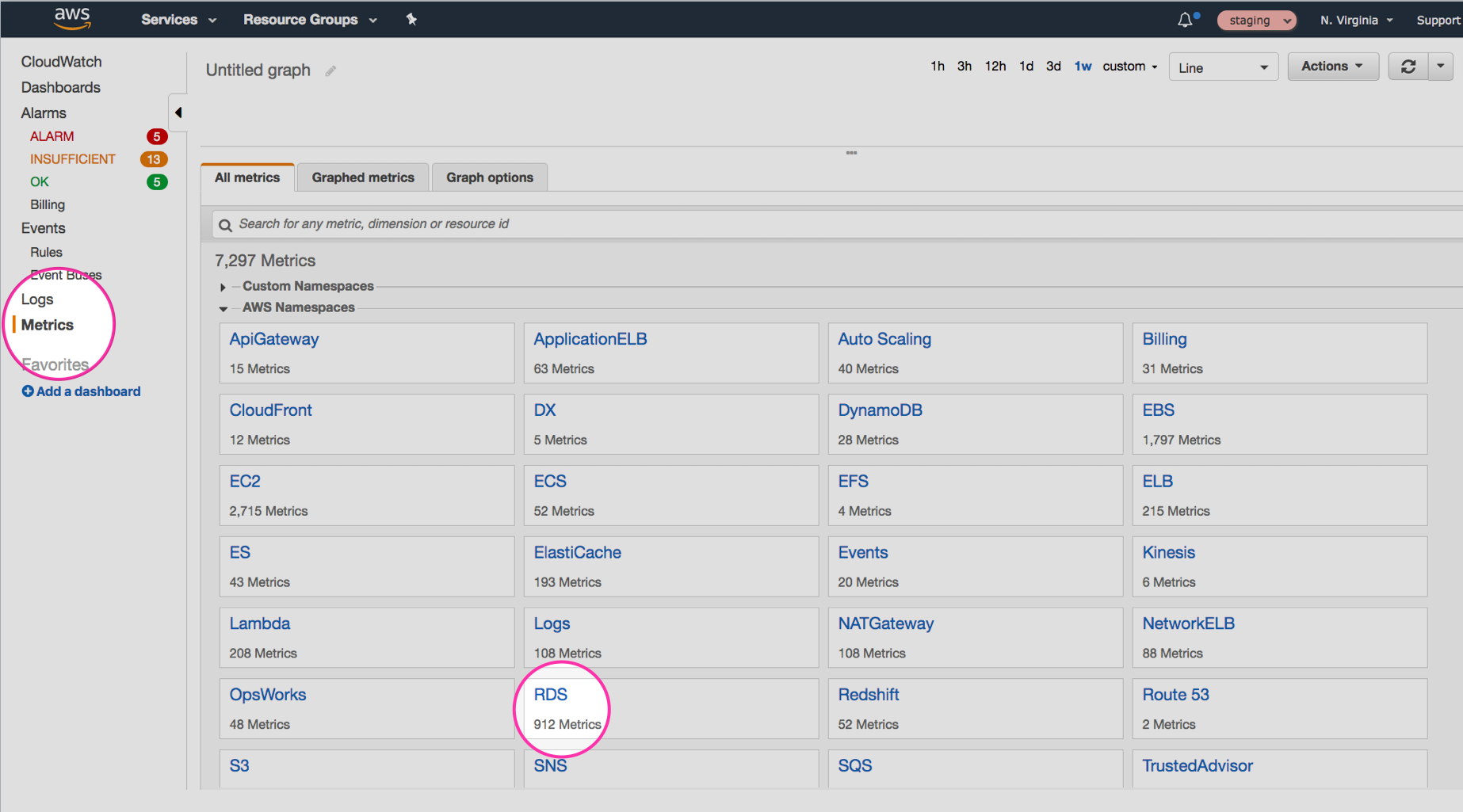

To access metrics from your database instances, visit the AWS CloudWatch console, click on “Metrics” in the sidebar, and select “RDS” under “AWS Namespaces.”

rds metrics postgresql monitoring tools aws console

You can filter RDS metrics by dimensions like the database name, instance class, or engine. You can also search for a metric name or database, to view available metrics that adhere to that search query, broken down by database instance identifier.

Select the name of the metric you want to visualize, and you’ll immediately see it graphed at the top of the console. You can adjust the time window to view how the metric has changed over the past hour, day, week, or any other custom period. You can also graph multiple metrics from the same database instance, or graph the same metric across multiple instances.

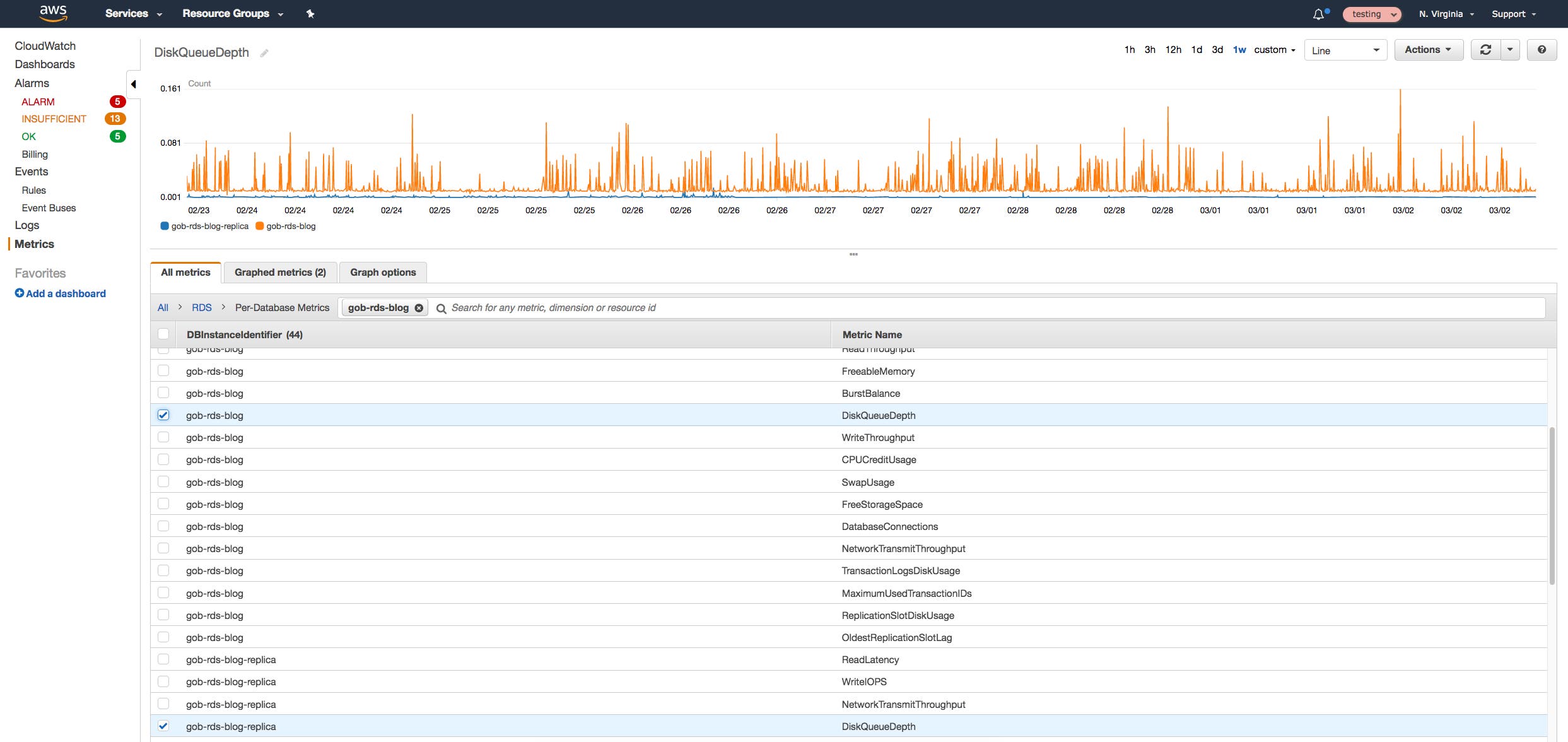

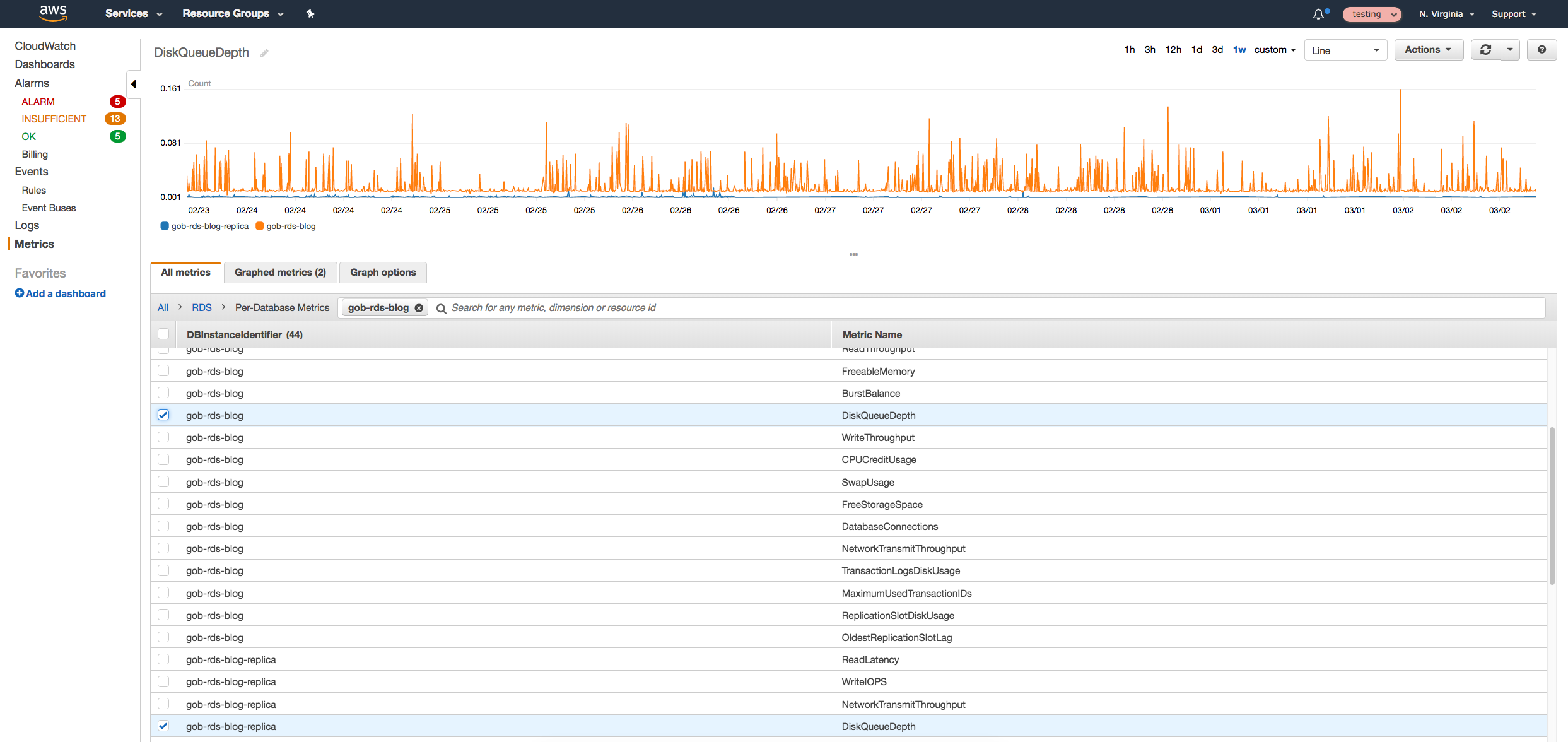

In the graph below, we’re comparing the CloudWatch metric DiskQueueDepth across our primary/source instance and its read replica.

rds metrics postgresql monitoring tools aws console graph multiple metrics

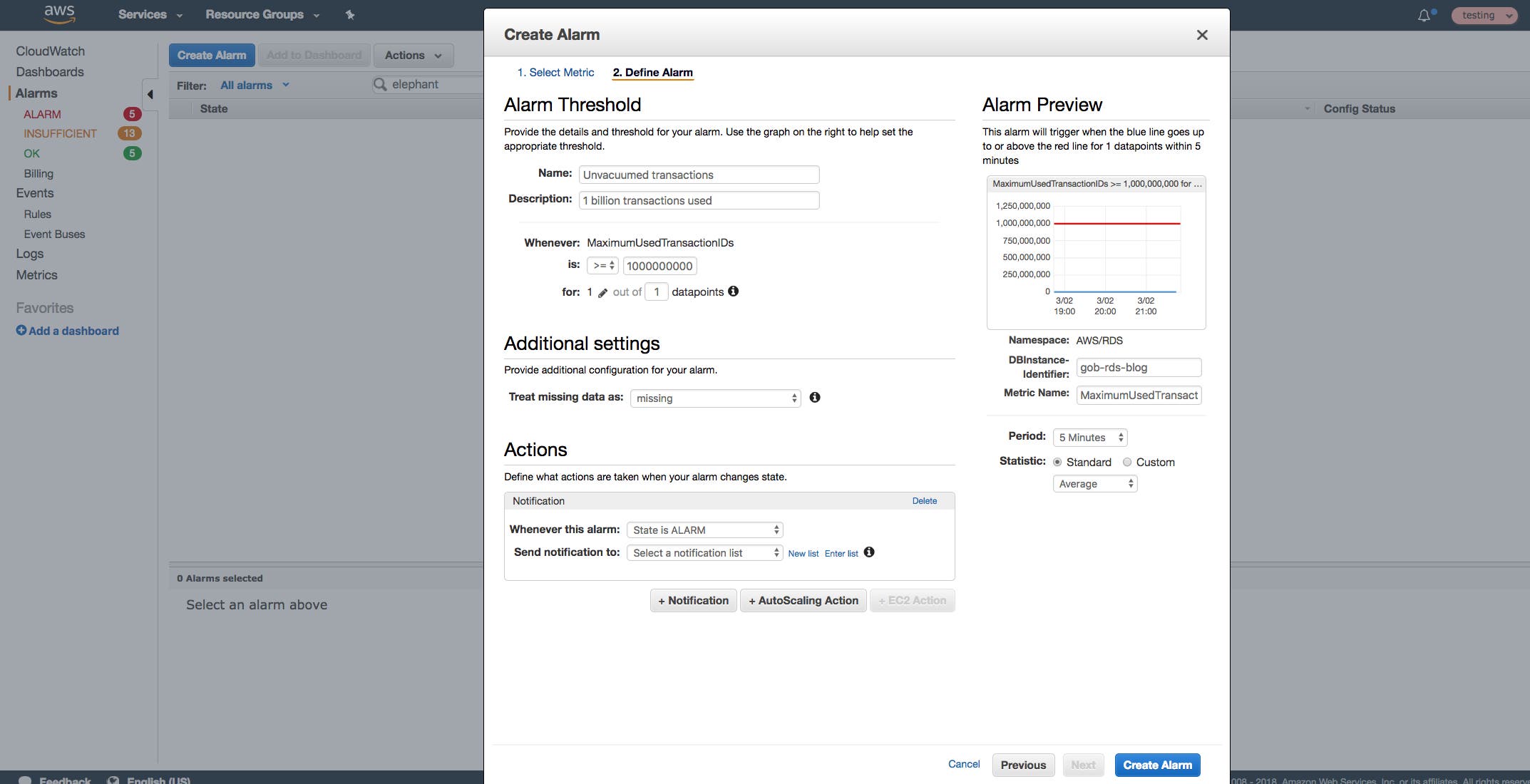

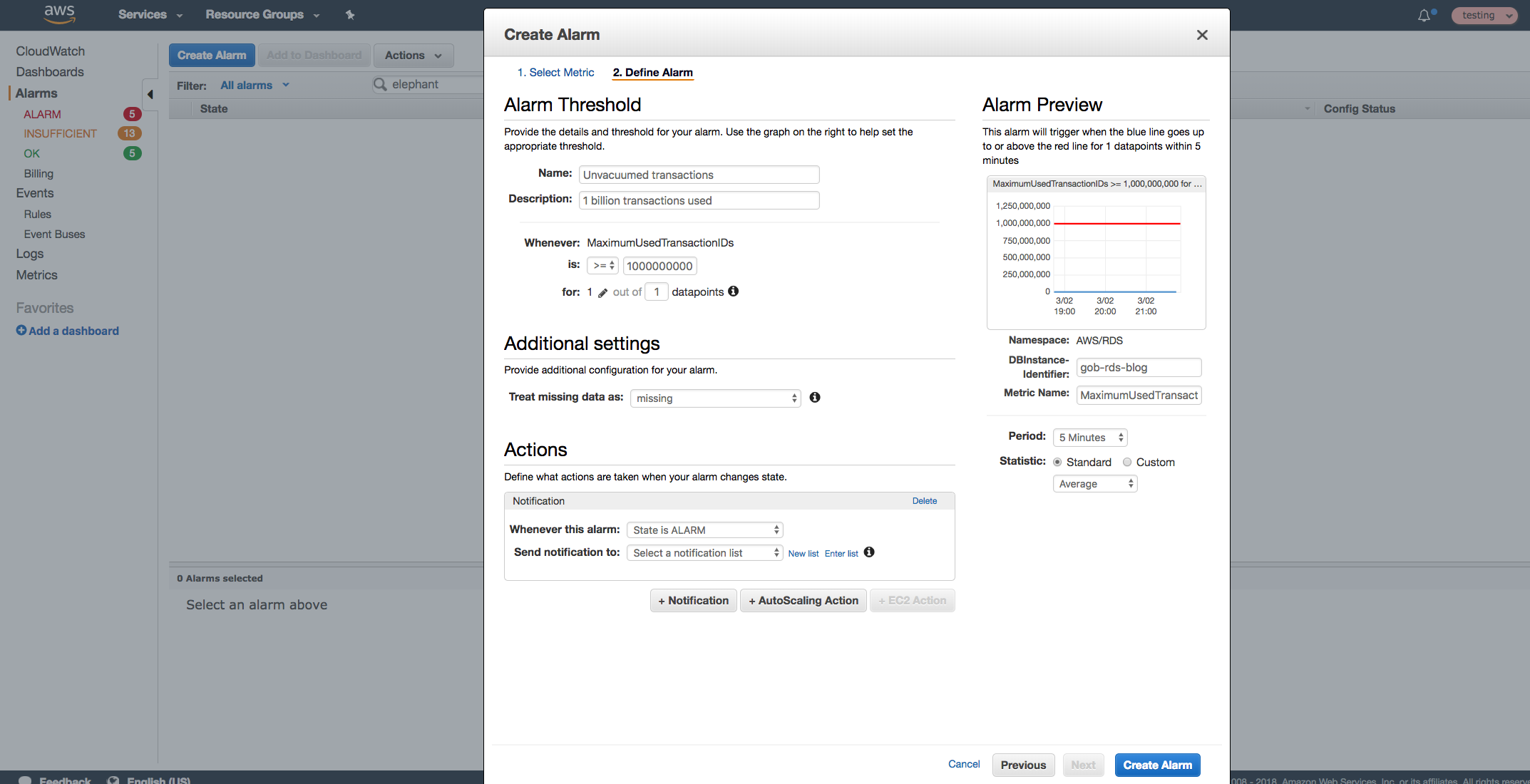

You can also create an alert by clicking on the bell icon to the right of the metric name. You’ll need to provide a threshold, duration, and aggregator (average, minimum, maximum, sum, or sample count), as well as a list of email addresses to contact if the alert triggers.

rds metrics postgresql monitoring tools aws console cloudwatch alarm alert

Querying RDS metrics from the AWS CLI

The AWS command line interface (AWS CLI) provides a quick and easy way to query any particular CloudWatch metric from your RDS database instances, scoped to one or more dimensions. Before proceeding, you’ll need to install and configure the AWS CLI by following the instructions here.

The AWS CLI’s get-metric-statistics command provides data for the specified metric. You’ll need to supply the following parameters:

  • namespace: For RDS, this will be AWS/RDS
  • metric-name: the CloudWatch metric name (e.g., FreeStorageSpace)
  • start-time and end-time: timestamp (in ISO 8601 UTC format) of the first and last data point you want to query
  • period: the period over which all data points during the designated time window should be aggregated (granularity)

Other optional parameters include:

  • dimensions: The dimensions used to filter this metric, formatted as Name:x,Value:y
  • statistics (or extended-statistics): the type of statistic you want to query (SampleCount, Average, Sum, Minimum, or Maximum). Use extended-statistics if you want to query a percentile value between p0.0 and p100
  • unit: the units you want the metric to be supplied in; if the metric is only available in one unit, specifying this parameter won’t do anything

For example, here’s how you would query the minimum value of FreeStorageSpace at a 60-second granularity over a period of two minutes (yielding the minimum data point in each one-minute bucket), filtered by the name of our database instance identifier (in this case, my-db-identifier):

aws cloudwatch get-metric-statistics
--namespace AWS/RDS
--metric-name FreeStorageSpace
--start-time 2018-02-27T00:00:00
--end-time 2018-02-27T00:02:00
--period 60
--statistics Minimum
--dimensions Name=DBInstanceIdentifier,Value=my-db-identifier

The output is:

{
    "Label": "FreeStorageSpace",
    "Datapoints": [
        {
            "Timestamp": "2018-02-27T00:01:00Z",
            "Minimum": 20067475456.0,
            "Unit": "Bytes"
        },
        {
            "Timestamp": "2018-02-27T00:00:00Z",
            "Minimum": 20067475456.0,
            "Unit": "Bytes"
        }
    ]
}

Consult the AWS documentation for more specific information about structuring your metric queries.

Setting up an RDS PostgreSQL monitoring tool that integrates with CloudWatch

You can also use another monitoring tool to regularly query metrics from CloudWatch, and compare and correlate them with metrics from other parts of your infrastructure, including application-specific metrics from the applications that query your database. If you use a monitoring tool that integrates with the CloudWatch API as well as the other technologies in your stack, you will be able to gain a comprehensive overview of health and performance across all of your services and applications, as well as their underlying infrastructure. The next part of this series will explore how you can set up Datadog to automatically collect, visualize, and alert on RDS PostgreSQL data alongside metrics from more than 250 technologies.

How to collect native PostgreSQL metrics from RDS

Many of the PostgreSQL metrics mentioned in Part 1 of this series are not available in CloudWatch and will need to be queried directly from the database instance. You can collect these metrics via the PostgreSQL statistics collector’s statistics views, including:

The collector aggregates statistics on a per-table, per-database, or per-index basis, depending on the metric. You can dig deeper into each statistics view’s actual query language by looking at the system views source code. For example, the code for pg_stat_database indicates that it queries the number of connections, deadlocks, and tuples/rows fetched, returned, updated, inserted, and deleted.

Some of the metrics mentioned in Part 1 are not accessible through these statistics views, and will need to be collected through other types of queries, as explained in a later section of this post.

Connecting to your RDS PostgreSQL instance

In order to access PostgreSQL’s statistics views, you’ll need to connect to PostgreSQL on your RDS instance. Although RDS does not enable to you to connect directly to the host of your database instance, you can configure the inbound rules of your RDS instance’s security group to accept access to the PostgreSQL database within the same security group. For example, you can launch an EC2 instance in the same security group as your RDS instance, and add a rule to the EC2 instance to allow inbound SSH traffic. Then you can SSH into your EC2 instance and connect to the RDS instance by using a tool like psql. You would need to specify the endpoint of your database instance as the host, and log in with the credentials for the master user you created while setting up your RDS instance:

psql --host=<INSTANCE_ENDPOINT> --port=5432 --username=<YOUR_USERNAME> --password --dbname=<YOUR_DB>

You can locate your <INSTANCE_ENDPOINT> by navigating to your database instance in the AWS console. It will look similar to instancename.xxxxxx.us-east-1.rds.amazonaws.com.

You will be prompted to enter the password you created when you first launched your RDS PostgreSQL instance. The master user is automatically added to the rds_superuser role, which is granted the highest level of privileges in RDS. This role is closely related to the superuser role in conventional PostgreSQL, with some restrictions. Therefore, it may be a good idea to create another user and assign it the privileges it needs:

create user <NEW_USERNAME> with password <PASSWORD>;
grant SELECT ON pg_stat_database to <NEW_USERNAME>;

If you wish to switch to the new user before proceeding, you can exit the psql session and start another one as your newly created user:

psql --host=<INSTANCE_ENDPOINT> --port=5432 --username=<NEW_USERNAME> --password --dbname=<YOUR_DB>

Now we are ready to query metrics from the PostgreSQL database engine’s statistics collector.

PostgreSQL’s statistics collector

PostgreSQL’s built-in statistics collector automatically tracks internal statistics about the database, including its tables and indexes. The statistics collector groups useful metrics into pre-defined statistics views, which are essentially windows into certain aspects of the database’s activity. In order to access these statistics views, we’ll need to make sure that the statistics collector is enabled on our RDS PostgreSQL instance. By default, it should already be enabled, but we can confirm this in one of two ways:

  1. In the AWS RDS console, navigate to your instance’s parameter group and search for track_activities. If the value is set to 1, this means that the statistics collector is currently enabled, while a value of 0 indicates that it is disabled in this parameter group.
  2. In a psql session, query the track_activities parameter directly like so:

    SHOW track_activities;
    track_activities
    ------------------
    on
    (1 row)


If track_activities is off/disabled for some reason, you can either modify the parameter group directly in the AWS management console, or use the AWS CLI’s modify-db-parameter-group command to apply the change:

aws rds modify-db-parameter-group
--db-parameter-group-name <MY_PARAMETER_GROUP>
--parameters ParameterName=track_activities,ParameterValue=on,ApplyMethod=immediate

If it is successful, you should see the following output (with the name of your parameter group replaced below):

{
    "DBParameterGroupName": "<MY_PARAMETER_GROUP>"
}

Since track_activities is a dynamic parameter, we were able to apply this change immediately (as indicated by ApplyMethod=immediate). If we had been modifying a static parameter, we would have specified ApplyMethod=pending-reboot instead.

Now that track_activities is on, the statistics collector will start collecting internal statistics about your database. The statistics collector process continuously aggregates data about the server’s activity, but it will only report the data as frequently as specified by the PGSTAT_STAT_INTERVAL (500 milliseconds, by default). Note that each time a query is issued to one of the statistics views, it will use the most recently available report to deliver information about the database’s activity at that point in time, which will be slightly delayed in comparison to real-time activity. Statistics collector views will not yield data about any queries or transactions that are currently in progress.

pg_stat_database

Let’s take a look at the pg_stat_database statistics view in more detail:

 datid |    datname    | numbackends | xact_commit | xact_rollback | blks_read | blks_hit | tup_returned | tup_fetched | tup_inserted | tup_updated | tup_deleted | conflicts | temp_files | temp_bytes | deadlocks | blk_read_time | blk_write_time |          stats_reset
-------+---------------+-------------+-------------+---------------+-----------+----------+--------------+-------------+--------------+-------------+-------------+-----------+------------+------------+-----------+---------------+----------------+-------------------------------
 13289 | template0     |           0 |       62824 |             0 |       157 |  2356814 |     30247713 |      346244 |            4 |           2 |           4 |         0 |          0 |          0 |         0 |             0 |              0 | 2018-02-22 21:10:37.030342+00
 16384 | rdsadmin      |           1 |      586152 |             0 |       396 |  3500601 |     51714268 |      359285 |           30 |        3260 |           4 |         0 |          0 |          0 |         0 |             0 |              0 | 2017-12-07 03:11:43.2653+00
     1 | template1     |           0 |       62854 |             0 |       182 |  2358346 |     30256860 |      346808 |            4 |           3 |           4 |         0 |          0 |          0 |         0 |             0 |              0 | 2018-02-22 21:05:43.846763+00
 13294 | postgres      |           0 |       62882 |             0 |       237 |  2359602 |     30257679 |      347514 |            4 |           3 |           4 |         0 |          0 |          0 |         0 |             0 |              0 | 2017-12-07 03:11:42.88194+00
 16390 | testdb        |           1 |       62925 |            14 |       299 |  2364549 |     30538616 |      350470 |         1140 |           9 |          66 |         0 |          0 |          0 |         0 |             0 |              0 | 2018-02-22 21:10:37.060195+00
(5 rows)

We can see from the datname column that, like PostgreSQL, RDS creates three databases by default: template0, template1, and postgres. However, RDS also creates an additional rdsadmin database that is only accessible to the rdsadmin role, which is used internally by AWS to manage RDS (e.g., to manage autovacuuming). The rightmost column, stats_reset, shows the last time the statistics (which are reported as cumulative counters) were reset in this database.

pg_stat_database collects statistics about each database in the cluster, including the number of connections (numbackends), commits, rollbacks, and rows/tuples fetched and returned. Each row displays statistics for a different database, but you can also limit your query to a specific database as shown below:

SELECT * FROM pg_stat_database WHERE datname = 'testdb';

 datid |    datname    | numbackends | xact_commit | xact_rollback | blks_read | blks_hit | tup_returned | tup_fetched | tup_inserted | tup_updated | tup_deleted | conflicts  | temp_files  | temp_bytes | deadlocks | blk_read_time | blk_write_time |          stats_reset
-------+---------------+-------------+-------------+---------------+-----------+----------+--------------+-------------+--------------+-------------+-------------+-----------+------------+------------+-----------+---------------+----------------+-------------------------------
 16390 |    testdb     |           1 |       62994 |            16 |       299 |  2367210 |     30571960 |      350902 |         1140 |           9 |          66 |         0 |          0 |          0 |         0 |             0 |              0 | 2018-02-22 21:10:37.060195+00
(1 row)

pg_stat_user_tables

Whereas pg_stat_database collects and displays statistics for each database, pg_stat_user_tables displays statistics for each of the user tables in a particular database.

SELECT * FROM pg_stat_user_tables;

 relid | schemaname |  relname  | seq_scan | seq_tup_read | idx_scan | idx_tup_fetch | n_tup_ins | n_tup_upd | n_tup_del | n_tup_hot_upd | n_live_tup | n_dead_tup | n_mod_since_analyze | last_vacuum | last_autovacuum | last_analyze |       last_autoanalyze        | vacuum_count | autovacuum_count | analyze_count | autoanalyze_count
-------+------------+-----------+----------+--------------+----------+---------------+-----------+-----------+-----------+---------------+------------+------------+---------------------+-------------+-----------------+--------------+-------------------------------+--------------+------------------+---------------+-------------------
 16416 | public     | employees |        7 |           19 |          |               |         3 |         0 |         2 |             0 |          1 |          2 |                   5 |             |                 |              |                               |            0 |                0 |             0 |                 0
 16401 | public     | test      |        5 |         5000 |          |               |      1000 |         0 |         0 |             0 |       1000 |          0 |                   0 |             |                 |              | 2018-02-22 21:40:18.590377+00 |            0 |                0 |             0 |                 1
(2 rows)

This database contains two tables: employees and test. With pg_stat_user_tables, we can see a cumulative count of the sequential scans, index scans, and rows fetched/read/updated within each table.

pg_stat_user_indexes

pg_stat_user_indexes shows you how often each index is actually being used to serve queries. You can analyze this statistics view to determine if any indexes are underutilized, and consider deleting them in order to make better use of resources.

You can query this view like any other table, like so:

SELECT * FROM pg_stat_user_indexes;

 relid | indexrelid | schemaname |  relname   |      indexrelname       | idx_scan | idx_tup_read | idx_tup_fetch
-------+------------+------------+------------+-------------------------+----------+--------------+---------------
 16454 |      16491 | public     | categories | categories_pkey         |        0 |            0 |             0
 16463 |      16493 | public     | customers  | customers_pkey          |        1 |            1 |             1
 16470 |      16495 | public     | inventory  | inventory_pkey          |        0 |            0 |             0
 16478 |      16497 | public     | orders     | orders_pkey             |        0 |            0 |             0
 16484 |      16499 | public     | products   | products_pkey           |        0 |            0 |             0
 16458 |      16501 | public     | cust_hist  | ix_cust_hist_customerid |        0 |            0 |             0
 16463 |      16502 | public     | customers  | ix_cust_username        |        0 |            0 |             0
 16478 |      16503 | public     | orders     | ix_order_custid         |        0 |            0 |             0
 16473 |      16504 | public     | orderlines | ix_orderlines_orderid   |        0 |            0 |             0
 16484 |      16505 | public     | products   | ix_prod_category        |        0 |            0 |             0
 16484 |      16506 | public     | products   | ix_prod_special         |        0 |            0 |             0
(11 rows)

The indexrelname column shows the name of the index, while idx_scan tells you how many times that index has been scanned.

pg_stat_bgwriter

As mentioned in Part 1, monitoring the checkpoint process can help you determine how much load is being placed on your databases. The pg_stat_bgwriter view will return one row of data that shows the number of total checkpoints completed across all databases in your cluster, broken down by the type of checkpoint (timed or requested), and how shared buffers were flushed to disk: during a checkpoint process (buffers_checkpoint), by the background writer (buffers_clean), or by another backend process (buffers_backend):

SELECT * FROM pg_stat_bgwriter;

 checkpoints_timed | checkpoints_req | checkpoint_write_time | checkpoint_sync_time | buffers_checkpoint | buffers_clean | maxwritten_clean | buffers_backend | buffers_backend_fsync | buffers_alloc |          stats_reset
-------------------+-----------------+-----------------------+----------------------+--------------------+---------------+------------------+-----------------+-----------------------+---------------+-------------------------------
              3139 |              17 |                 71436 |                 9828 |               3834 |             0 |                0 |              40 |                     0 |          1327 | 2017-12-07 03:11:41.894957+00
(1 row)

Querying other PostgreSQL statistics

Although most of the metrics covered in Part 1 are available through PostgreSQL’s predefined statistics views, these four categories of metrics need to be accessed from system administration functions and other native sources:

Tracking replication delay

You can connect to any replica database instance through psql to query replication delay in two ways: in terms of seconds and bytes. CloudWatch provides a ReplicaLag metric that tracks the replication lag in seconds, and is equivalent to the following query:

SELECT extract(epoch from now() - pg_last_xact_replay_timestamp());

However, note that this query will tell you how much time has passed since the last WAL update was applied on the replica—so if you haven’t updated the database recently, this metric may be higher than expected. According to the RDS documentation, “A PostgreSQL Read Replica reports a replication lag of up to five minutes if there are no user transactions occurring on the source DB instance.”

To supplement the ReplicaLag metric, you can also query the replication lag in bytes on each replica, by using pg_xlog_location_diff() to calculate the difference between two recovery information functions: pg_last_xlog_receive_location() and pg_last_xlog_replay_location(). The first function tracks the location in the WAL file that was most recently synced to disk on the replica, while the second function tracks the location in the WAL file that was most recently applied/replayed on the replica. Note that these functions have been renamed in PostgreSQL 10 to pg_wal_lsn_diff(), pg_last_wal_receive_lsn() and pg_last_wal_replay_lsn().

Let’s initialize a psql session on a replica database instance and query the replication delay in bytes, using the recovery information functions stated above:

# on PostgreSQL versions <10.x:
SELECT abs(pg_xlog_location_diff(pg_last_xlog_receive_location(), pg_last_xlog_replay_location())) AS replication_delay_bytes;

# on PostgreSQL versions 10.x:
SELECT abs(pg_wal_lsn_diff(pg_last_wal_receive_lsn(), pg_last_wal_replay_lsn())) AS replication_delay_bytes;

This tells us the replication delay in bytes, in terms of the amount of WAL data that still needs to be applied on this replica instance in order to be up to date with the primary/source instance. You can automatically collect the output of this query and set up an alert when it increases significantly. This metric is not available in CloudWatch.

Connection metrics

Although you can access the number of active connections through pg_stat_database, you’ll need to query pg_settings to find the server’s current setting for the maximum number of connections:

SELECT setting::float FROM pg_settings WHERE name = 'max_connections';
 setting
---------
      87
(1 row)

If you use a connection pool like PgBouncer to proxy connections between your applications and PostgreSQL database instances, you can also monitor metrics from your connection pool in order to ensure that connections are functioning as expected.

Locks

Tracking the most recent status of locks granted across each of your databases can help you keep database operations running smoothly. The pg_locks view provides a breakdown of the type of lock (in the mode column), as well as the relevant database, relation, and process ID.

SELECT locktype, database, relation::regclass, mode, pid FROM pg_locks;


   locktype    | database | relation |       mode       | pid
---------------+----------+----------+------------------+-----
 relation      | 12066    | pg_locks | AccessShareLock  | 965
 virtualxid    |          |          | ExclusiveLock    | 965
 relation      | 16611    | 16628    | AccessShareLock  | 820
 relation      | 16611    | 16628    | RowExclusiveLock | 820
 relation      | 16611    | 16623    | AccessShareLock  | 820
 relation      | 16611    | 16623    | RowExclusiveLock | 820
 virtualxid    |          |          | ExclusiveLock    | 820
 relation      | 16611    | 16628    | AccessShareLock  | 835
 relation      | 16611    | 16623    | AccessShareLock  | 835
 virtualxid    |          |          | ExclusiveLock    | 835
 transactionid |          |          | ExclusiveLock    | 820
(11 rows)

You’ll see an object identifier (OID) listed in the database and relation columns. To translate these OIDs into the actual names of each database and relation, you can query the database OID from pg_database, and the relation OID from pg_class.

Disk usage

RDS provides the FreeStorageSpace CloudWatch metric to help you track the amount of free storage on each database instance. However, you should also investigate how that storage is actually being used by the tables and indexes in your database, by using PostgreSQL’s database object size functions. In the example below, we are querying the size of mydb using the pg_database_size function. We also wrap the query in pg_size_pretty() to return the result in a human-readable format:

SELECT pg_size_pretty(pg_database_size('mydb')) AS mydbsize;

 mydbsize
------------
 846 MB
(1 row)

You can check the size of your tables by querying the object ID (OID) of each table in your database, and using that OID to query the size of each table from pg_table_size. The following query will show you how much disk space the top five tables are using (excluding indexes):

SELECT
       relname AS "table_name",
       pg_size_pretty(pg_table_size(C.oid)) AS "table_size"
FROM
       pg_class C
LEFT JOIN pg_namespace N ON (N.oid = C.relnamespace)
WHERE nspname NOT IN ('pg_catalog', 'information_schema') AND nspname !~ '^pg_toast' AND relkind IN ('r')
ORDER BY pg_table_size(C.oid)
DESC LIMIT 5;

    table_name    | table_size
------------------+------------
 pgbench_accounts | 705 MB
 customers        | 3944 kB
 orderlines       | 3112 kB
 cust_hist        | 2648 kB
 products         | 840 kB
(5 rows)

You can customize these queries to gain more granular views into disk usage across tables and indexes in your databases. For example, in the query above, you could replace pg_table_size with pg_total_relation_size, if you’d like to include indexes in your table_size metric. You can also fine-tune your queries by using regular expressions. For example, in the query above, we used the !~ regex operator to exclude TOAST tables.

Comprehensive insights into RDS metrics + your PostgreSQL database

In this post, we’ve shown you how to gain more visibility into RDS PostgreSQL performance by combining RDS metrics from CloudWatch with statistics from the PostgreSQL database engine. Because pg_stat_* statistics views provide data in the form of cumulative counters that reset periodically, ad hoc queries are often not as helpful as regularly collecting these metrics and tracking how they change over time.

In the next part of this series, we’ll show you how to use Datadog to automatically query PostgreSQL statistics from your RDS instances, visualize them in a customizable, out-of-the-box dashboard, and analyze RDS PostgreSQL performance alongside more than 250 other technologies. We’ll also show you how to deploy Datadog’s distributed tracing and APM so you can optimize and troubleshoot applications that query data from your RDS PostgreSQL database instances.
