Hadoop architectural overview

Author Evan Mouzakitis

Last updated: December 18, 2020

This post is part 1 of a 4-part series on monitoring Hadoop health and performance. Part 2 dives into the key metrics to monitor, Part 3 details how to monitor Hadoop performance natively, and Part 4 explains how to monitor a Hadoop deployment with Datadog.

In this post, we’ll explore each of the technologies that make up a typical Hadoop deployment, and see how they all fit together. If you’re already familiar with HDFS, MapReduce, and YARN, feel free to continue on to Part 2 to dive right into Hadoop’s key performance metrics.

What is Hadoop?

Apache Hadoop is a framework for distributed computation and storage of very large data sets on computer clusters. Hadoop began as a project to implement Google’s MapReduce programming model, and has become synonymous with a rich ecosystem of related technologies, not limited to: Apache Pig, Apache Hive, Apache Spark, Apache HBase, and others.

Hadoop has seen widespread adoption by many companies including Facebook, Yahoo!, Adobe, Cisco, eBay, Netflix, and Datadog.

Hadoop architecture overview

Hadoop has three core components, plus ZooKeeper if you want to enable high availability:

Note that HDFS uses the term “master” to describe the primary node in a cluster. Where possible, we will use the more inclusive term “leader.” In cases where using an alternative term would introduce ambiguity, such as the YARN-specific class name ApplicationMaster, we preserve the original term.

HDFS architecture

The Hadoop Distributed File System (HDFS) is the underlying file system of a Hadoop cluster. It provides scalable, fault-tolerant, rack-aware data storage designed to be deployed on commodity hardware. Several attributes set HDFS apart from other distributed file systems. Among them, some of the key differentiators are that HDFS is:

  • designed with hardware failure in mind
  • built for large datasets, with a default block size of 128 MB
  • optimized for sequential operations
  • rack-aware
  • cross-platform and supports heterogeneous clusters

Data in a Hadoop cluster is broken down into smaller units (called blocks) and distributed throughout the cluster. Each block is duplicated twice (for a total of three copies), with the two replicas stored on two nodes in a rack somewhere else in the cluster. Since the data has a default replication factor of three, it is highly available and fault-tolerant. If a copy is lost (because of machine failure, for example), HDFS will automatically re-replicate it elsewhere in the cluster, ensuring that the threefold replication factor is maintained.

HDFS architecture can vary, depending on the Hadoop version and features needed:

HDFS is based on a leader/follower architecture. Each cluster is typically composed of a single NameNode, an optional SecondaryNameNode (for data recovery in the event of failure), and an arbitrary number of DataNodes.

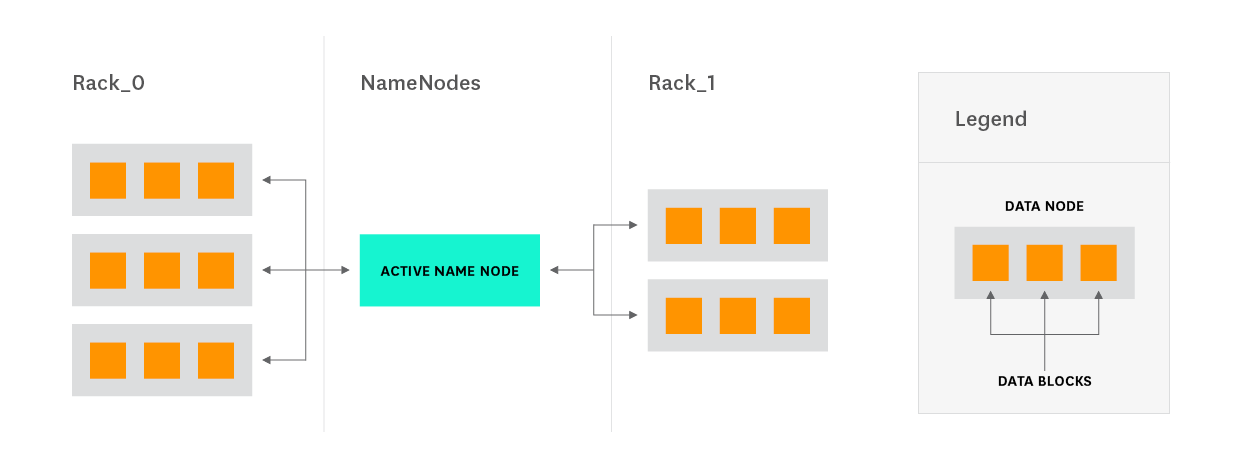

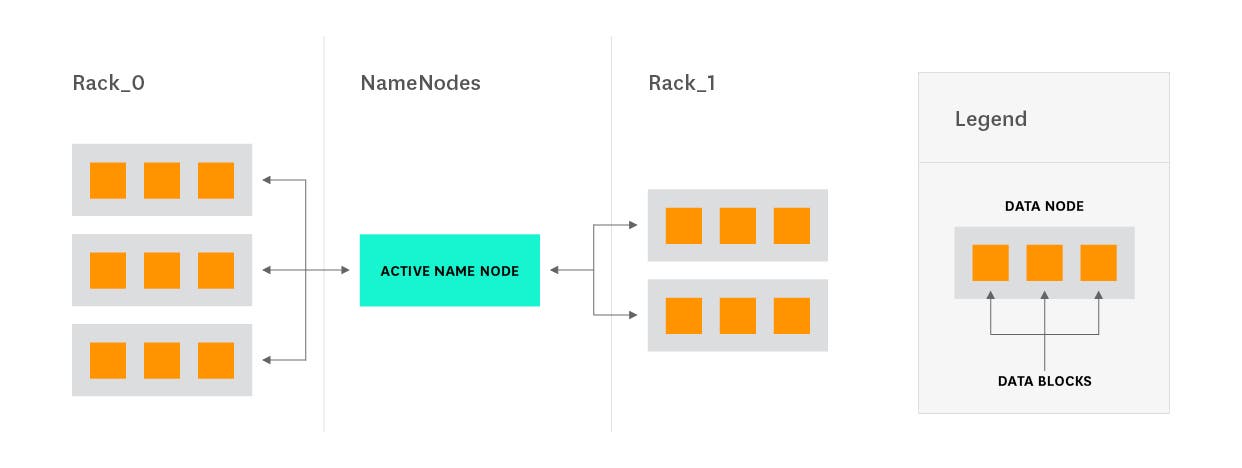

Hadoop architecture - Vanilla Hadoop deployment diagram
A vanilla Hadoop deployment

In addition to managing the file system namespace and associated metadata (file-to-block maps), the NameNode acts as the leader and brokers access to files by clients (though once brokered, clients communicate directly with DataNodes). The NameNode operates entirely in memory, persisting its state to disk. It represents a single point of failure for a Hadoop cluster that is not running in high-availability mode. To mitigate against this, production clusters typically persist state to two local disks (in case of a single disk failure) and also to an NFS-mounted volume (in case of total machine failure). In high-availability mode, Hadoop maintains a standby NameNode to guard against failures. Earlier versions of Hadoop offered an alternative with the introduction of the SecondaryNameNode concept, and many clusters today still operate with a SecondaryNameNode.

To understand the function of the SecondaryNameNode requires an explanation of the mechanism by which the NameNode stores its state.

fsimage and the edit log

The NameNode stores file system metadata in two different files: the fsimage and the edit log. The fsimage stores a complete snapshot of the file system’s metadata at a specific moment in time. Incremental changes (like renaming or appending a few bytes to a file) are then stored in the edit log for durability, rather than creating a new fsimage snapshot each time the namespace is modified. With this separation of concerns in places, the NameNode can restore its state by loading the fsimage and performing all the transforms from the edit log, restoring the file system to its most recent state.

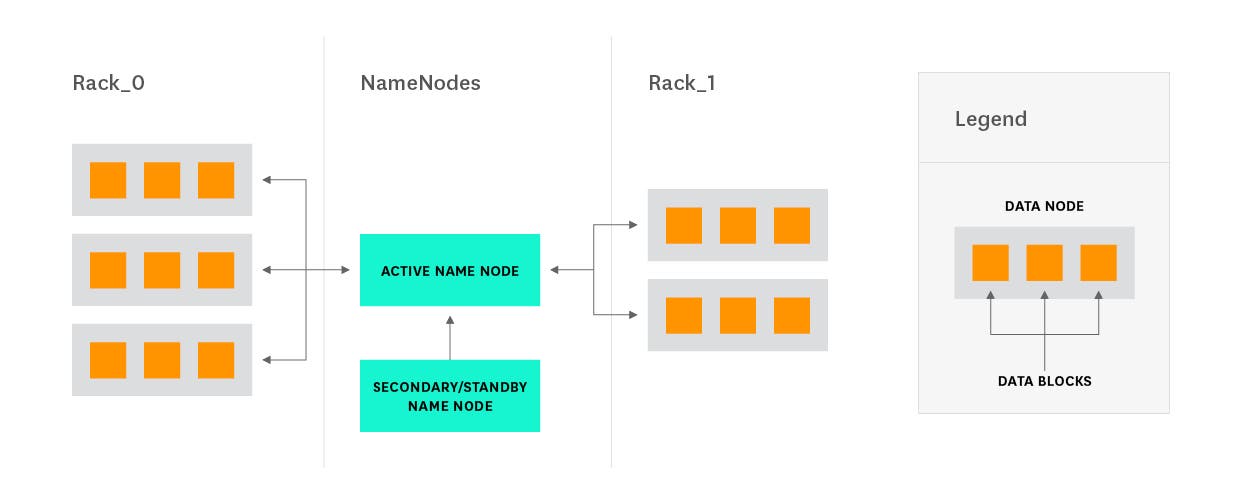

Hadoop architecture - Secondary NameNode architecture diagram

Through RPC calls, the SecondaryNameNode is able to independently update its copy of the fsimage each time changes are made to the edit log. Thus, if the NameNode goes down in the presence of a SecondaryNameNode, the NameNode doesn’t need to replay the edit log on top of the fsimage; cluster administrators can retrieve an updated copy of the fsimage from the SecondaryNameNode.

SecondaryNameNodes provide a means for much faster recovery in the event of NameNode failure. Despite its name, though, it is not a drop-in replacement for the NameNode and does not provide a means for automated failover.

HA NameNode service

Early versions of Hadoop introduced several concepts (like SecondaryNameNodes, among others) to make the NameNode more resilient. With Hadoop 2.0 and Standby NameNodes, a mechanism for true high availability was realized.

Standby NameNodes, which are incompatible with SecondaryNameNodes, provide automatic failover in the event of primary NameNode failure. Achieving high availability with Standby NameNodes requires shared storage between the primary and standbys (for the edit log).

Though there are two options for the necessary shared storage—NFS and Quorum Journal Manager(QJM)—only QJM is considered production-ready.

NameNode and QJM

Using the Quorum Journal Manager (QJM) is the preferred method for achieving high availability for HDFS.

Using QJM to maintain consistency of Active and Standby state requires that both nodes be able to communicate with a group of JournalNodes (JNs). When the Active node modifies the namespace, it logs a record of the change to a majority of JournalNodes. The StandbyNode watches the JNs for changes to the edit log and applies them to its own namespace.

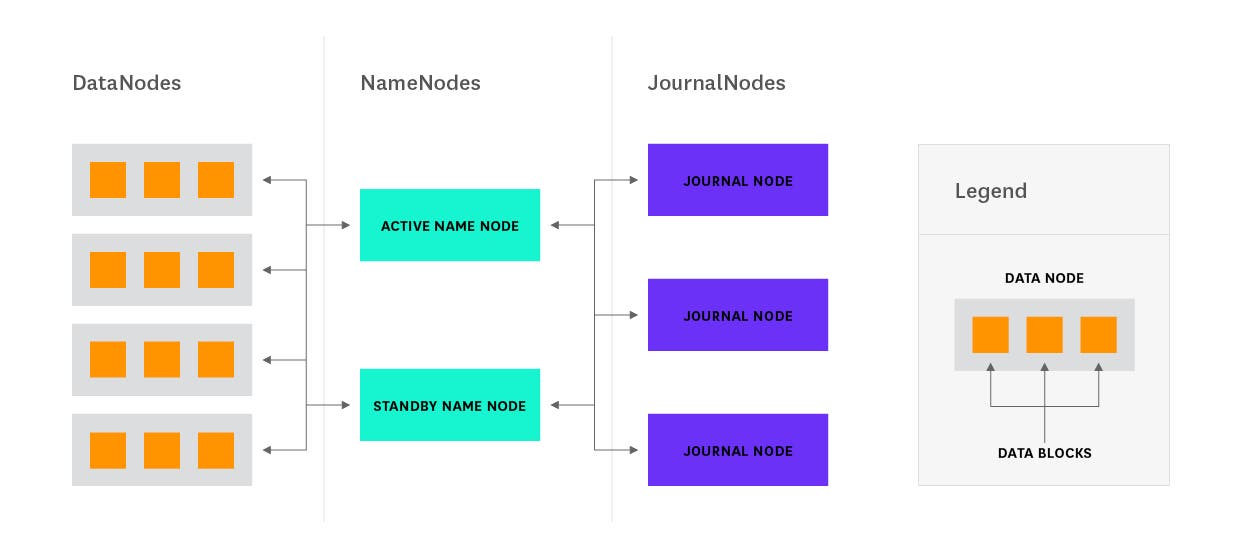

Hadoop architecture - QJM interaction diagram

JournalNode daemons have relatively low overhead, so provisioning additional machines for them is unnecessary—the daemons can be run on the same machines as existing Hadoop nodes. Typically, a daemon is run on the ResourceManager as well as on each of the two NameNodes. Because edit log changes require a quorum of JNs, you must maintain an odd number of at least three daemons running at any one time. JournalNodes can tolerate failures of at most (N - 1) / 2 nodes (where N is the number of JNs).

Alternative file systems

HDFS is the canonical file system for Hadoop, but Hadoop’s file system abstraction supports a number of alternative file systems, including the local file system, FTP, AWS S3, Azure’s file system, and OpenStack’s Swift. The file system used is determined by the access URI, e.g., file: for the local file system, s3: for data stored on Amazon S3, etc. Most of these have limitations, though, and in production HDFS is almost always the file system used for the cluster.

MapReduce overview

MapReduce is a framework tailor-made for processing large datasets in a distributed fashion across multiple machines. The core of a MapReduce job can be, err, reduced to three operations: map an input data set into a collection of <key,value> pairs, shuffle the resulting data (transfer data to the reducers), then reduce over all pairs with the same key.

The top-level unit of work in MapReduce is a job. Each job is composed of one or more map or reduce tasks.

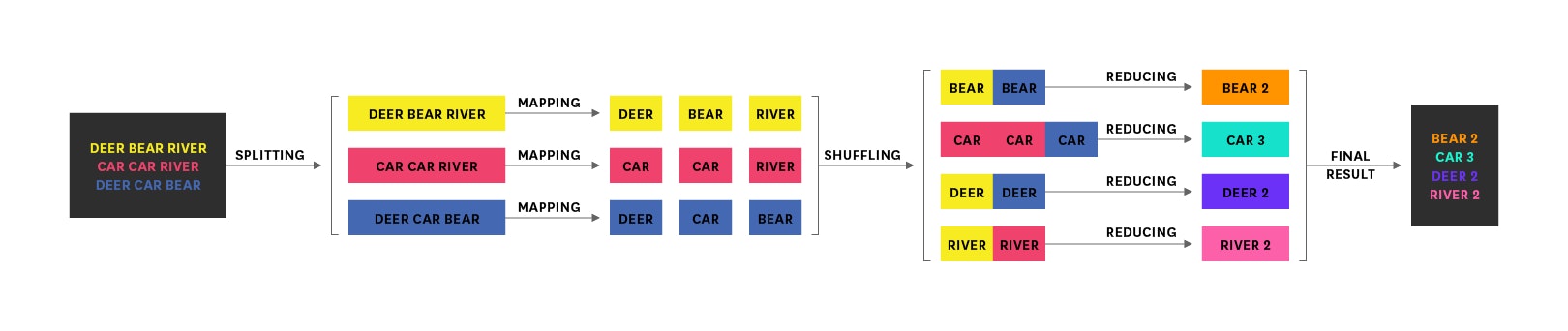

The canonical example of a MapReduce job is counting word frequencies in a body of text. The image below illustrates such an example:

Hadoop architecture - MapReduce word frequency flow diagram

Key differences between versions

In earlier versions of Hadoop (pre-2.0), MapReduce took care of its own resource allocation and job scheduling as well as the actual computation.

Newer versions of Hadoop (2.0+) decouple the scheduling from the computation with YARN, which handles the allocation of computational resources for MapReduce jobs. This allows other processing frameworks (see below) to share the cluster without resource contention.

Other frameworks

Though Hadoop comes with MapReduce out of the box, a number of computing frameworks have been developed for or adapted to the Hadoop ecosystem. Among the more popular are Apache Spark and Apache Tez. This article series will focus on MapReduce as the compute framework.

Untangling YARN

YARN (Yet Another Resource Negotiator) is the framework responsible for assigning computational resources for application execution.

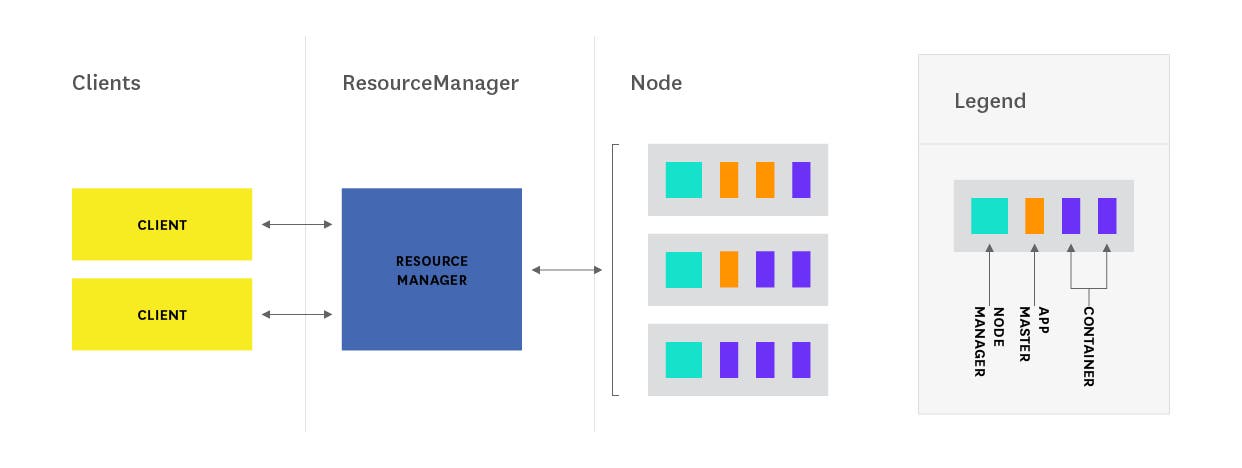

Hadoop architecture - YARN architecture diagram

YARN consists of three core components:

Caution, overloaded terms ahead

YARN uses some very common terms in uncommon ways. For example, when most people hear “container”, they think Docker. In the Hadoop ecosystem, it takes on a new meaning: a Resource Container (RC) represents a collection of physical resources. It is an abstraction used to bundle resources into distinct, allocatable units.

“Application” is another overloaded term—in YARN, an application represents a set of tasks that are to be executed together. Application in YARN is synonymous with MapReduce’s job concept.


The ResourceManager is the rack-aware leader node in YARN. It is responsible for taking inventory of available resources and runs several critical services, the most important of which is the Scheduler.


The Scheduler component of the YARN ResourceManager allocates resources to running applications. It is a pure scheduler in that it does not monitor or track application status or progress. As it performs no monitoring, it cannot guarantee that tasks will restart should they fail.

As of Hadoop 2.7.2, YARN supports several scheduler policies: the CapacityScheduler, the FairScheduler, and the FIFO (first in first out) Scheduler. The default scheduler varies by Hadoop distribution, but no matter the policy used, the Scheduler allocates resources by assigning containers (bundles of physical resources) to the requesting ApplicationMaster.


Each application running on Hadoop has its own dedicated ApplicationMaster instance. This instance lives in its own, separate container on one of the nodes in the cluster. Each application’s ApplicationMaster periodically sends heartbeat messages to the ResourceManager, as well as requests for additional resources, if needed. Additional resources are granted by the ResourceManager through the assignment of Container Resource leases, which serve as reservations for containers on NodeManagers.

The ApplicationMaster oversees the execution of an application over its full lifespan, from requesting additional containers from the ResourceManger, to submitting container release requests to the NodeManager.


The NodeManager is a per-node agent tasked with overseeing containers throughout their lifecycles, monitoring container resource usage, and periodically communicating with the ResourceManager.

Conceptually, NodeManagers are much like TaskTrackers in earlier versions of Hadoop. Whereas TaskTrackers used a fixed number of map and reduce slots for scheduling, NodeManagers have a number of dynamically created, arbitrarily-sized Resource Containers (RCs). Unlike slots in MR1, RCs can be used for map tasks, reduce tasks, or tasks from other frameworks.

Executing applications with YARN

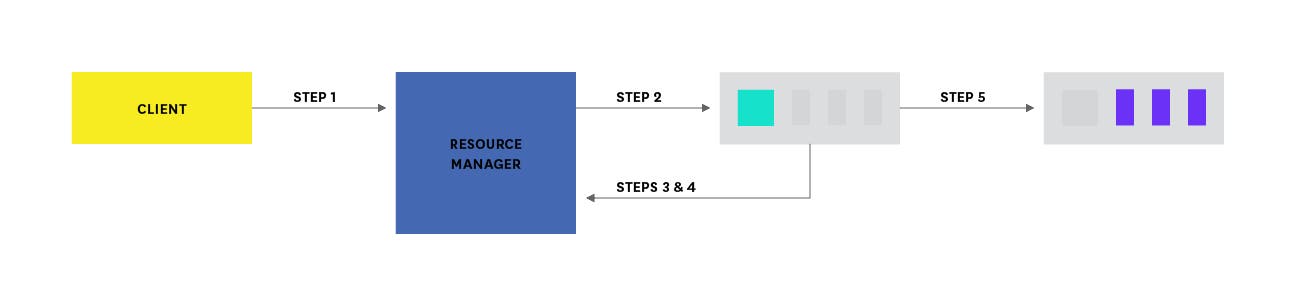

Hadoop architecture - YARN application execution diagram

Typical application execution with YARN follows this flow:

  1. Client program submits the MapReduce application to the ResourceManager, along with information to launch the application-specific ApplicationMaster.
  2. ResourceManager negotiates a container for the ApplicationMaster and launches the ApplicationMaster.
  3. ApplicationMaster boots and registers with the ResourceManager, allowing the original calling client to interface directly with the ApplicationMaster.
  4. ApplicationMaster negotiates resources (resource containers) for client application.
  5. ApplicationMaster gives the container launch specification to the NodeManager, which launches a container for the application.
  6. During execution, client polls ApplicationMaster for application status and progress.
  7. Upon completion, ApplicationMaster deregisters with the ResourceManager and shuts down, returning its containers to the resource pool.


Apache ZooKeeper is a popular tool used for coordination and synchronization of distributed systems. Since Hadoop 2.0, ZooKeeper has become an essential service for Hadoop clusters, providing a mechanism for enabling high-availability of former single points of failure, specifically the HDFS NameNode and YARN ResourceManager.

HDFS and ZooKeeper

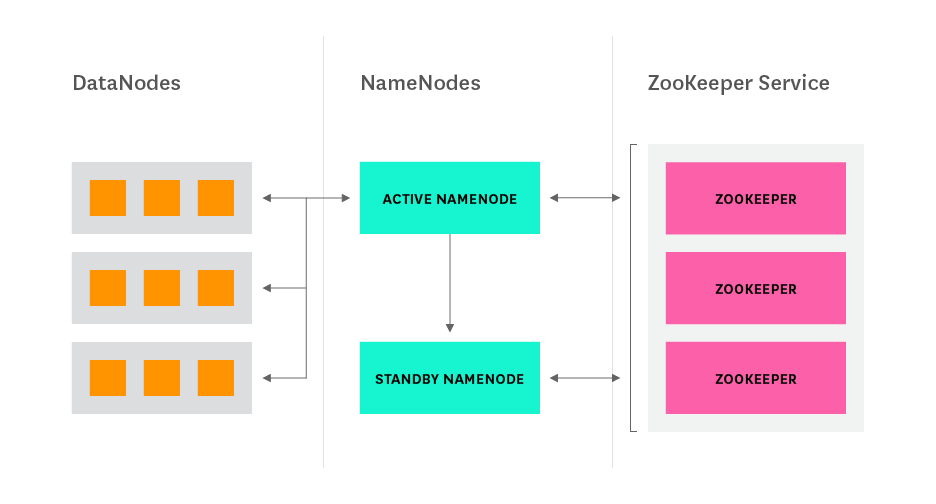

Hadoop architecture - NameNode HA with ZooKeeper diagram

In previous versions of Hadoop, the NameNode represented a single point of failure—should the NameNode fail, the entire HDFS cluster would become unavailable as the metadata containing the file-to-block mappings would be lost.

Hadoop 2.0 brought many improvements, among them a high-availability NameNode service. When ZooKeeper is used in conjunction with QJM or NFS, it enables automatic failover.

Automatic NameNode failover requires two components: a ZooKeeper quorum, and a ZKFailoverController (ZKFC) process running on each NameNode. The NameNode and Standby NameNodes maintain persistent sessions in ZooKeeper, with the NameNode holding a special, ephemeral “lock” znode (the equivalent of a file or directory, in a regular file system); if the NameNode does not maintain contact with the ZooKeeper ensemble, its session is expired, triggering a failover (handled by ZKFC).

ZKFailoverController is a process that runs alongside the NameNode and Standby NameNodes, periodically checking the health of the node it is running on. On healthy nodes, ZKFC will try to acquire the lock znode, succeeding if no other node holds the lock (which means the primary NameNode has failed). Once the lock is acquired, the new NameNode transitions to the active NameNode.

YARN and ZooKeeper

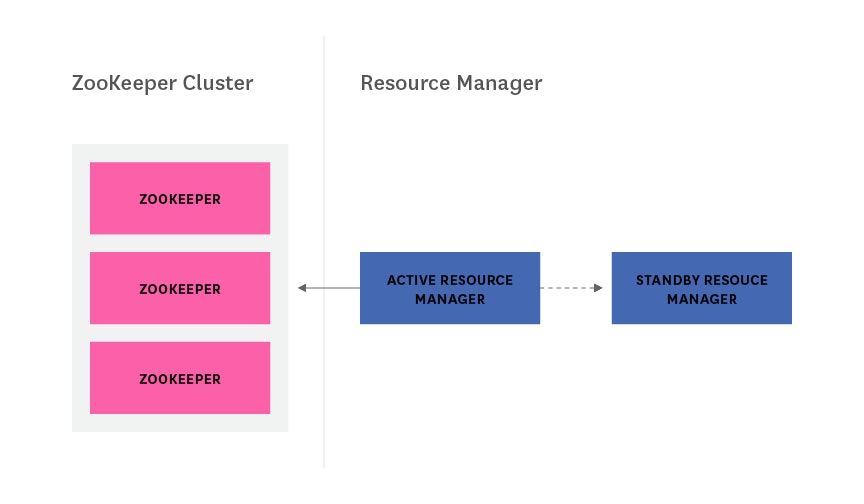

Hadoop architecture - ResourceManager HA with ZooKeeper diagram

When YARN was initially created, its ResourceManager represented a single point of failure—if NodeManagers lost contact with the ResourceManager, all jobs in progress would be halted, and no new jobs could be assigned.

Hadoop 2.4 improved YARN’s resilience with the release of the ResourceManager high-availability feature. The new feature incorporates ZooKeeper to allow for automatic failover to a standby ResourceManager in the event of the primary’s failure.

Like HDFS, YARN uses a similar, ZooKeeper-managed lock to ensure only one ResourceManager is active at once. Unlike HDFS, YARN’s automatic failover mechanism does not run as a separate process—instead, its ActiveStandbyElector service is part of the ResourceManager process itself. Like ZKFailoverController, the ActiveStandbyElector service on each ResourceManager continuously vies for control of an ephemeral znode, ActiveStandbyElectorLock. Because the node is ephemeral, if the currently active RM allows the session to expire, the RM that successfully acquires a lock on the ActiveStandbyElectorLock will automatically be promoted to the active state.

From theory, to practice

In this post, we’ve explored all the core components found in a standard Hadoop cluster.

Read on to the next article in this series for an examination of Hadoop’s key performance metrics and health indicators.


Thanks to Ian Wrigley, Director of Education Services at Confluent, for generously sharing their Hadoop expertise for this article.
